Engine Coolant Fan Replacement

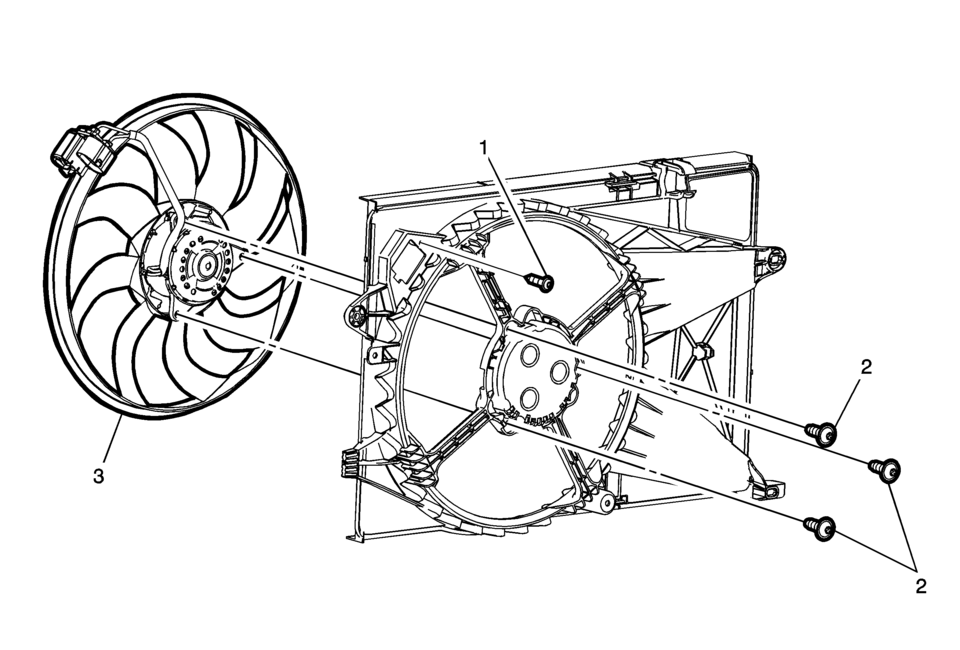

Callout

Component Name

Preliminary Procedure

Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement.

1

Engine Coolant Fan Motor Electrical Harness Connector Fastener

Caution:

Refer to Fastener Caution.

2

Engine Coolant Fan Motor Fastener (Qty: 3)

3

Engine Coolant Fan Motor Assembly

Engine Coolant Fan Replacement (LDE/LUW)
Removal Procedure Unclip transmission cooler lines from shroud if equipped. Unclip radiator surge tank outlet hose from fan shroud. Disconnect the engine coolant fan wiring harnes ...

Engine Coolant Fan Resistor Mount Repair
Engine Coolant Fan Resistor Mount Repair Callout Component Name Preliminary Procedure Remove the fasteners securing the radiator su ...
