Chevrolet Sonic Repair Manual: Engine Coolant Thermostat Removal

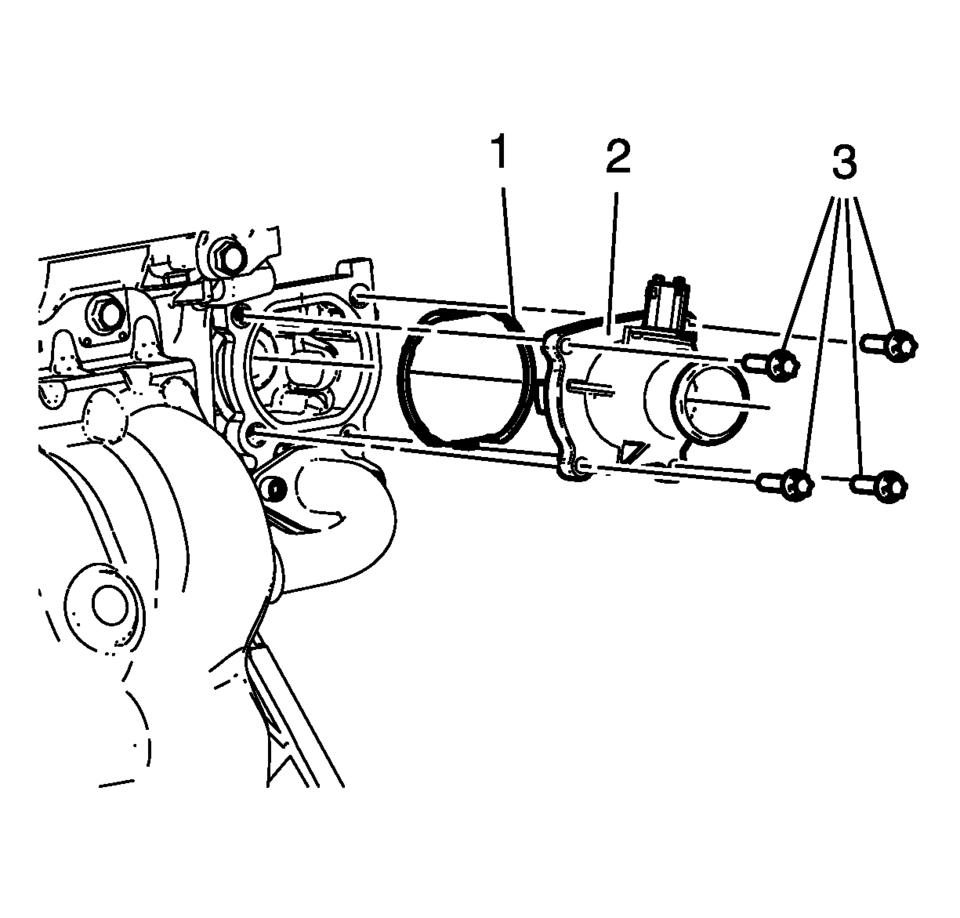

- Remove the 4 engine coolant thermostat bolts (3).
- Remove the engine coolant thermostat assembly (2).
- Remove the engine coolant seal (1).
Caution:
Refer to Engine Coolant Thermostat Housing Caution.
Engine Coolant Thermostat Installation
Caution: Refer to Engine Coolant Thermostat Housing Caution.
Clean the engine coolant sealing surfaces.
Install the engine coolant seal (1).
Install the engine coolant ...
Engine Coolant Thermostat Replacement (LUV)
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct
Replacement.
...
