Chevrolet Sonic Repair Manual: Turbocharger Wastegate Regulator Solenoid Valve Replacement
|

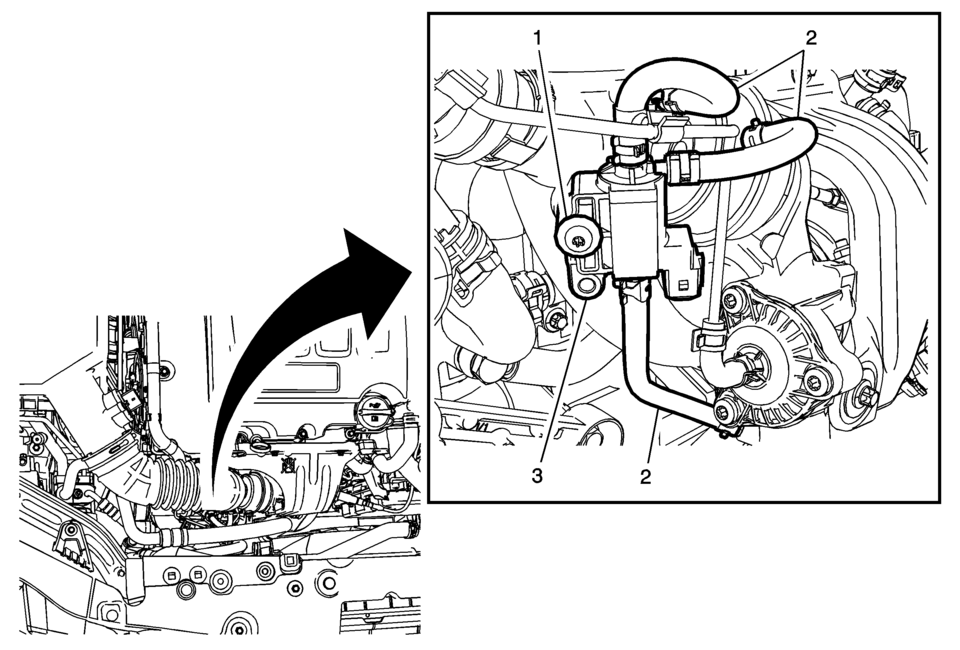

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Disconnect the radiator outlet hose from the water inlet. Refer to Water Inlet Replacement. |
|
|
1 |
Turbocharger Wastegate Regulator Solenoid Valve Fastener Caution: Refer to Fastener Caution.
8 Y (71 lb in) |
|
2 |
Turbocharger Wastegate Regulator Solenoid Valve Hose (Qty: 3) |
|
3 |
Turbocharger Wastegate Regulator Solenoid Valve Procedure
Disconnect the electrical connector. |
Turbocharger System Description
12
(1)
Turbocharger Bypass Solenoid Valve
(2)
Multifunction Intake Air Sensor
(3)
Turbocharger Wastegate Regulator Solenoid Valve
(4) ...
