Chevrolet Sonic Repair Manual: Engine Mount Bracket Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Block / Engine Mounts / Engine Mount Bracket Replacement



Engine Mount Bracket Replacement

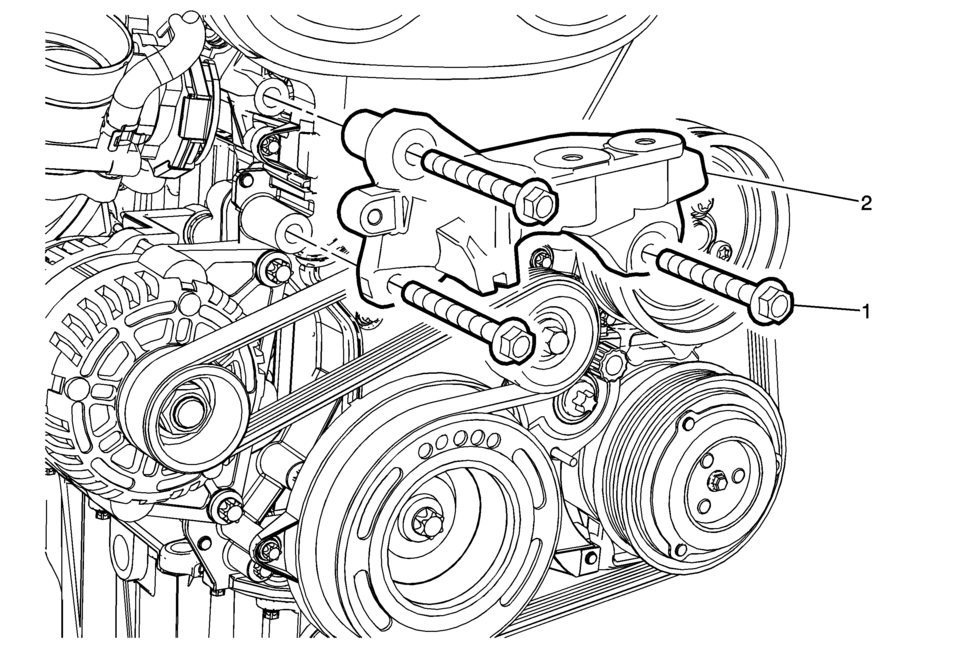

Callout

Component Name

Preliminary Procedure

Remove the engine mount. Refer to Engine Mount Replacement.

1

Engine Mount Bracket Bolt (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


50 Y (37 lb ft)

2

Engine Mount Bracket

Engine Mount Bracket Removal
Remove the 3 engine mount bracket bolts (1). Remove the engine mount bracket (2). ...

Engine Mount Bracket Replacement - Right Side
Engine Mount Bracket Replacement - Right Side Callout Component Name Preliminary Procedures Remove the engine mount. Refer to Engin ...
