Engine Mount Bracket Replacement - Right Side

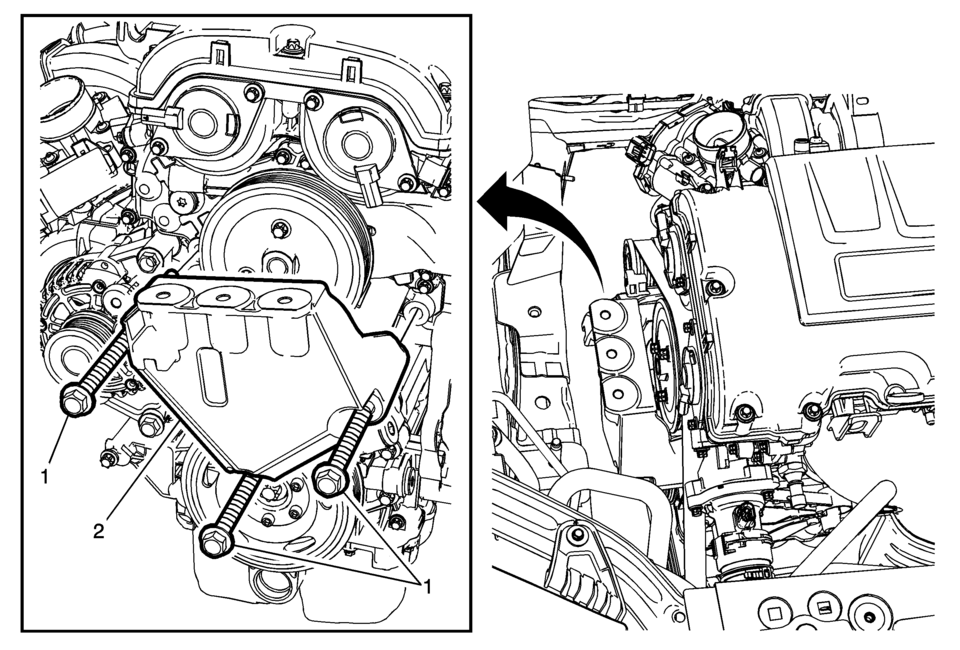

Callout

Component Name

Preliminary Procedures

  1. Remove the engine mount. Refer to Engine Mount Replacement - Right Side.
  2. Remove the front wheelhouse front liner if necessary. Refer to Front Wheelhouse Liner Replacement.

1

Engine Mount Bracket Fastener (Qty: 3)

Caution:

This component uses torque-to-yield bolts. When servicing this component do not reuse the bolts, New torque-to-yield bolts must be installed. Reusing used torque-to-yield bolts will not provide proper bolt torque and clamp load. Failure to install NEW torque-to-yield bolts may lead to engine damage.

Caution:

Refer to Fastener Caution.

Procedure

Raise and lower the engine as needed to access the bolts.

Tighten


62 Y (46 lb ft)

2

Engine Mount Bracket

Engine Mount Bracket Replacement
