Chevrolet Sonic Repair Manual: Exhaust Manifold Heat Shield Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Block / Exhaust2 / Exhaust Manifold Heat Shield Installation

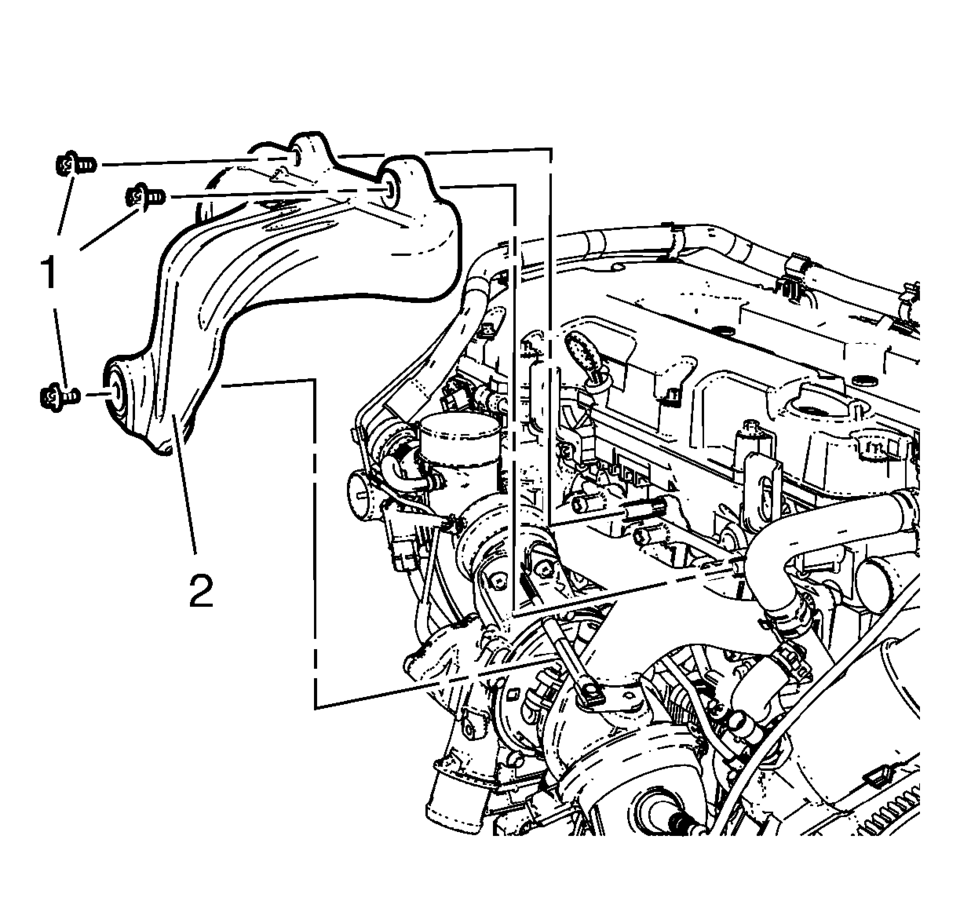

    Install the exhaust manifold heat shield (2).
  1. Install the exhaust manifold heat shield (2).
  2. Caution:

    Refer to Fastener Caution.

  3. Install the 3 exhaust manifold heat shield bolts (1) and the washers and tighten to  8 Y (71 lb in)

    .
