Chevrolet Sonic Repair Manual: Exhaust Manifold Cleaning and Inspection

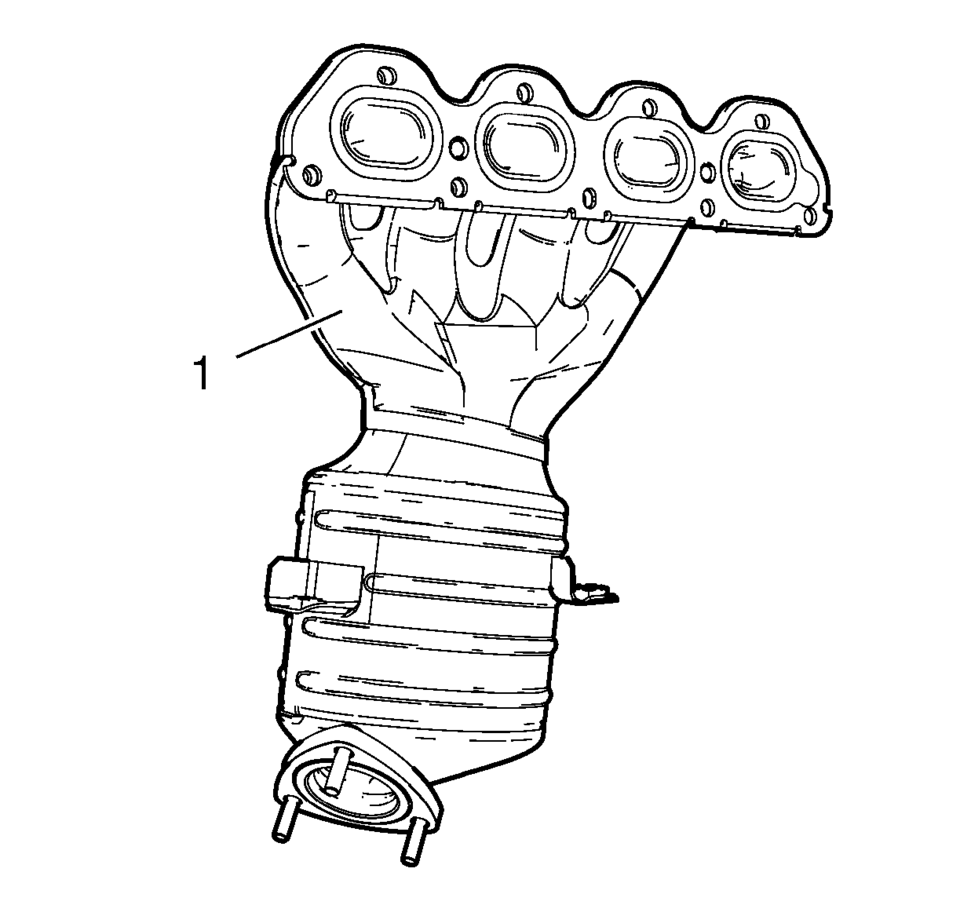

- Clean the exhaust manifold (1) in solvent.
- Dry the exhaust manifold (1) with compressed air.
- An exhaust manifold leak or damage may cause an exhaust leak and may effect OBD II system performance. A damaged exhaust must be replaced.
Warning:
Wear safety glasses in order to avoid eye damage.
Fuel Tank Heat Shield Replacement
Removal Procedure
Support the fuel tank with a suitable jack.
Remove the fuel tank strap fasteners (1) and lower the fuel tank straps (2).
Remove the ...
Exhaust Manifold Heat Shield Installation
Install the exhaust manifold heat shield (2).
Caution: Refer to Fastener Caution.
Install the 3 exhaust manifold heat shield bolts (1) and the washers and
...
