Chevrolet Sonic Owner's Manual: Fog Lamps (RS)

To replace the front fog lamp bulb:


To replace the front fog lamp bulb:

1. Locate the fog lamp located under the front fascia.

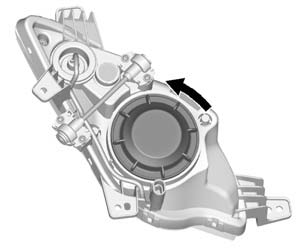

2. Remove the cap from the back of the fog lamp assembly.

3. Disconnect the electrical connector from the fog lamp bulb assembly.

4. Remove the bulb by turning it counterclockwise and pulling it straight out of the assembly.

5. Install the new bulb by turning it clockwise into the assembly.

6. Reconnect the electrical connector.

7. Replace the cap on the back of the fog lamp assembly.
