Front Bumper Fascia Center Support Bracket Replacement

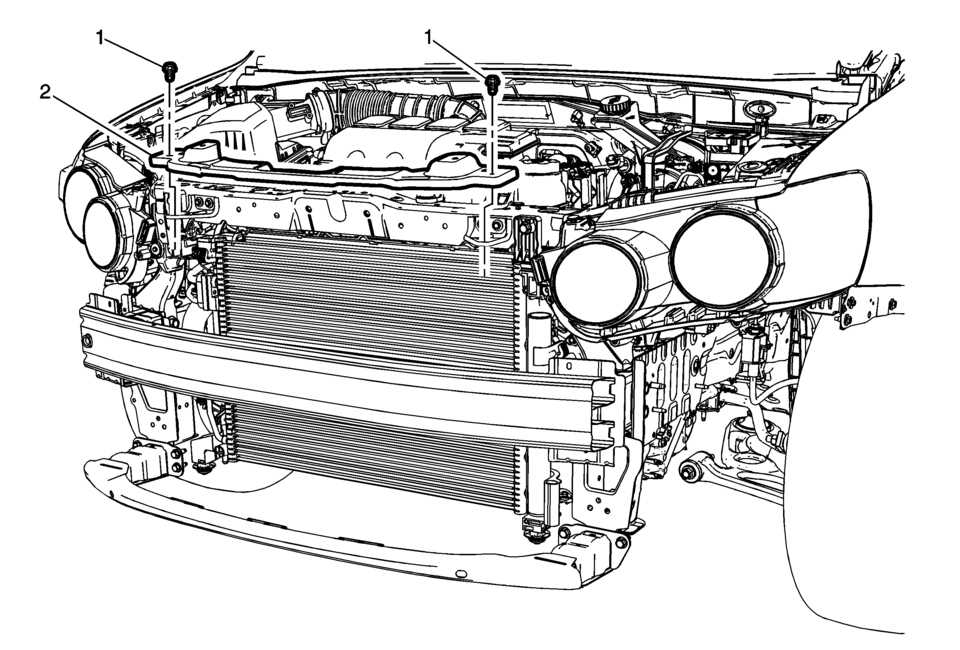

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Front Bumper Fascia Center Support Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y (80?€‰lb?€‰in)

2

Front Bumper Fascia Center Support
