Front Bumper Fascia Tow Eye Access Hole Cover Replacement

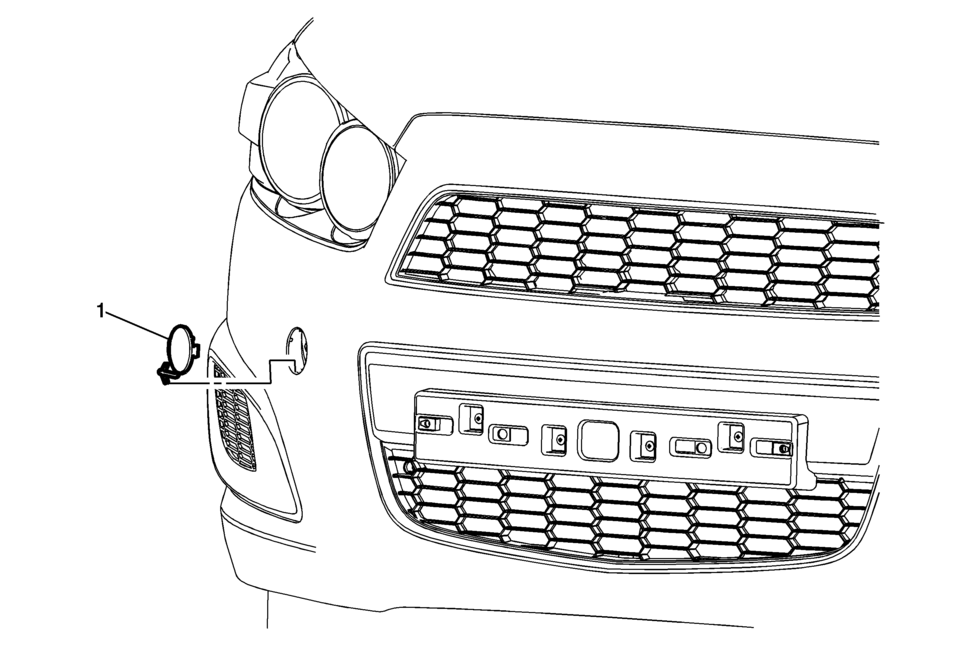

Callout

Component Name

1

Front Bumper Fascia Front Tow Eye Access Hole Cover

Procedure

  1. Using a small flat-bladed tool, release the cover from the front bumper fascia.
  2. Using needle nose pliers, release the v-notch hook from the square in the front fascia and remove.
