Front Bumper Lower Impact Bar Replacement

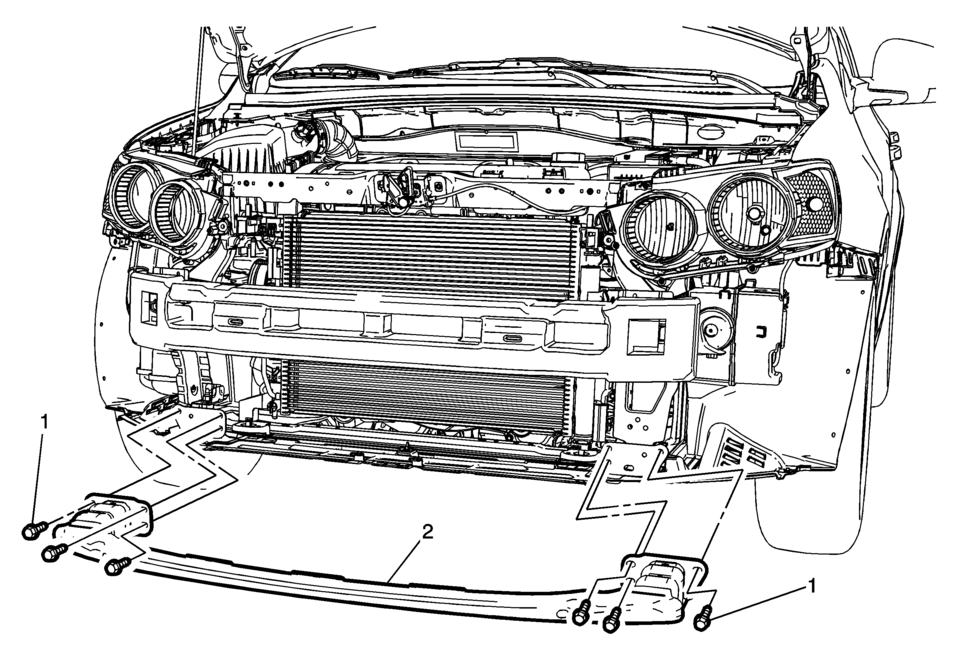

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Front Bumper Lower Impact Bar Bracket Bolt (Qty:?€‰6)

Caution:

Refer to Fastener Caution.

Tighten


22?€‰Y (16?€‰lb?€‰ft)

2

Front Bumper Lower Impact Bar

Front Bumper Impact Bar Replacement
