Front Bumper Upper Impact Bar Replacement

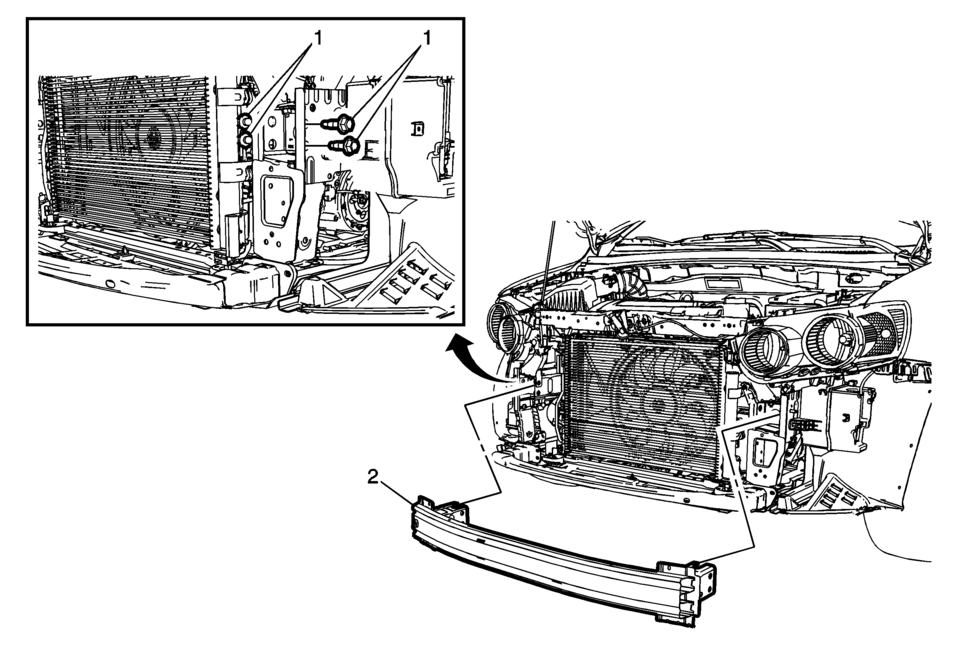

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Front Bumper Impact Bar Bolt (Qty:?€‰8)

Caution:

Refer to Fastener Caution.

Tighten


100?€‰Y (74?€‰lb?€‰ft)

2

Front Bumper Impact Bar

Procedure

  1. Disconnect the electrical connectors/harnesses as needed.
  2. Transfer any parts as needed.
