Chevrolet Sonic Repair Manual: Front Compartment Front Insulator Cover Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Information / Front Compartment Front Insulator Cover Replacement



Front Compartment Front Insulator Cover Replacement

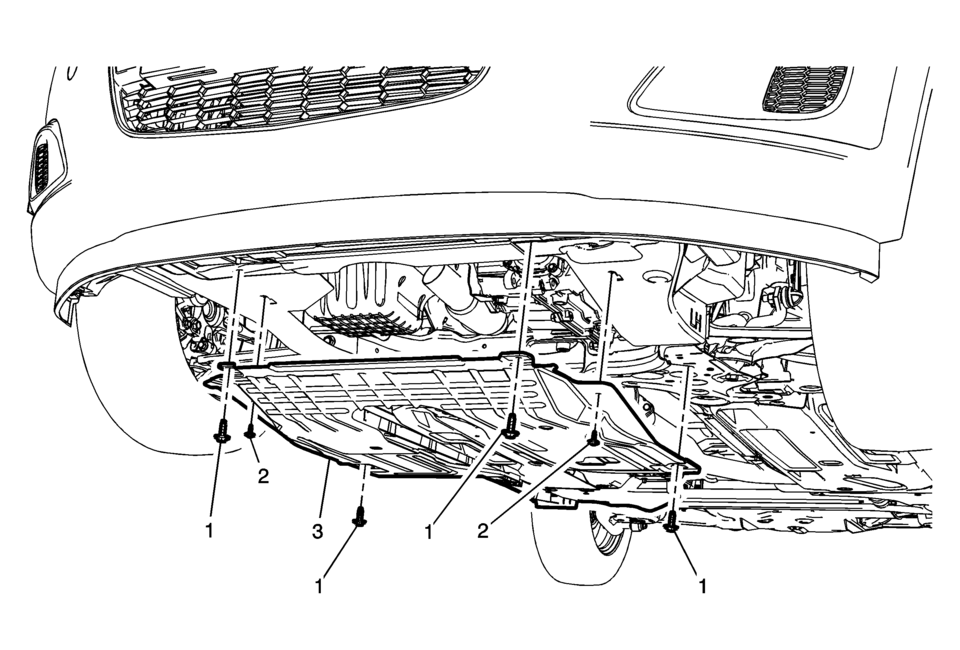

Callout

Component Name

1

Front Compartment Front Insulator Cover Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


2.5?€‰Y (22?€‰lb?€‰in)

2

Front Compartment Front Insulator Cover Bolt (Qty:?€‰4)

Tighten


22?€‰Y (16?€‰lb?€‰ft)

3

Front Compartment Front Insulator Cover
