Front Floor Console Bracket Replacement

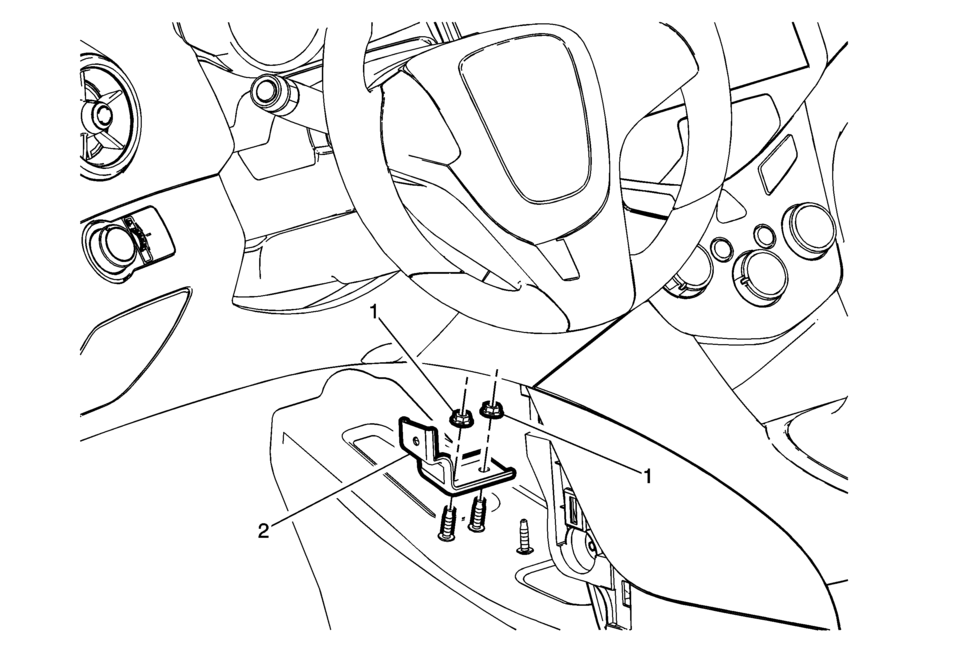

Callout

Component Name

Preliminary Procedure

Remove the left front floor console extension panel. Refer to Front Floor Console Extension Replacement - Left Side.

1

Front Floor Console Extension Nuts (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

9?€‰Y (80?€‰lb?€‰in)

2

Front Floor Console Bracket

Automatic Transmission Control Indicator Opening Cover Replacement
