Chevrolet Sonic Repair Manual: Front Fog Lamp Replacement



Front Fog Lamp Replacement

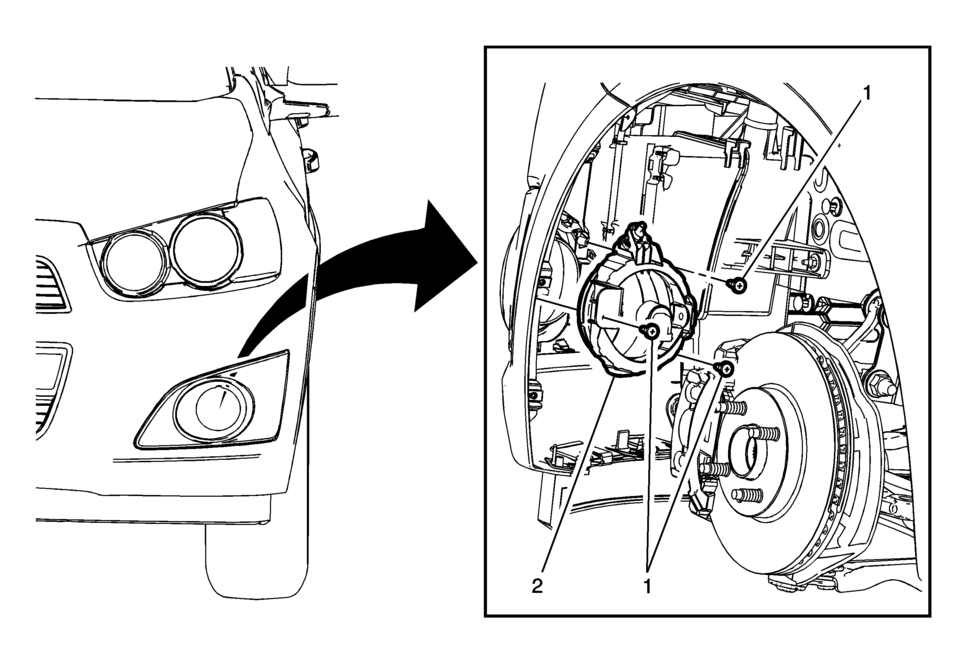

Callout

Component Name

Preliminary Procedure

  1. Remove either the right front or left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement.
  2. Disconnect the electrical connector from the fog lamp bulb socket.

1

Front Fog Lamp Screw (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Remove the three fog lamp mounting screws from the front bumper fascia.

2

Front Fog Lamp

Procedure

Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming.
