Front Opening Upper Cover Replacement

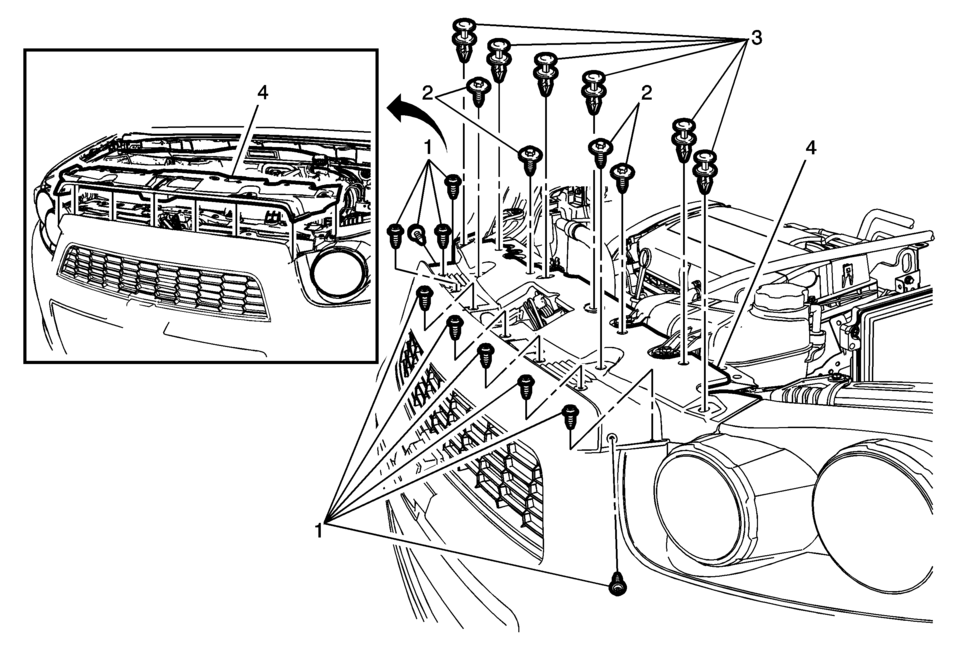

Callout

Component Name

1

Radiator Opening Upper Cover Screw (Qty:?€‰10)

Caution:

Refer to Fastener Caution.

2

Radiator Opening Upper Cover Bolt (Qty:?€‰4)

Tighten


4?€‰Y (36?€‰lb?€‰in)

3

Radiator Opening Upper Cover Push-In Retainer (Qty:?€‰6)

4

Radiator Opening Upper Cover
