Front Seat Belt Anchor Plate Tensioner Replacement

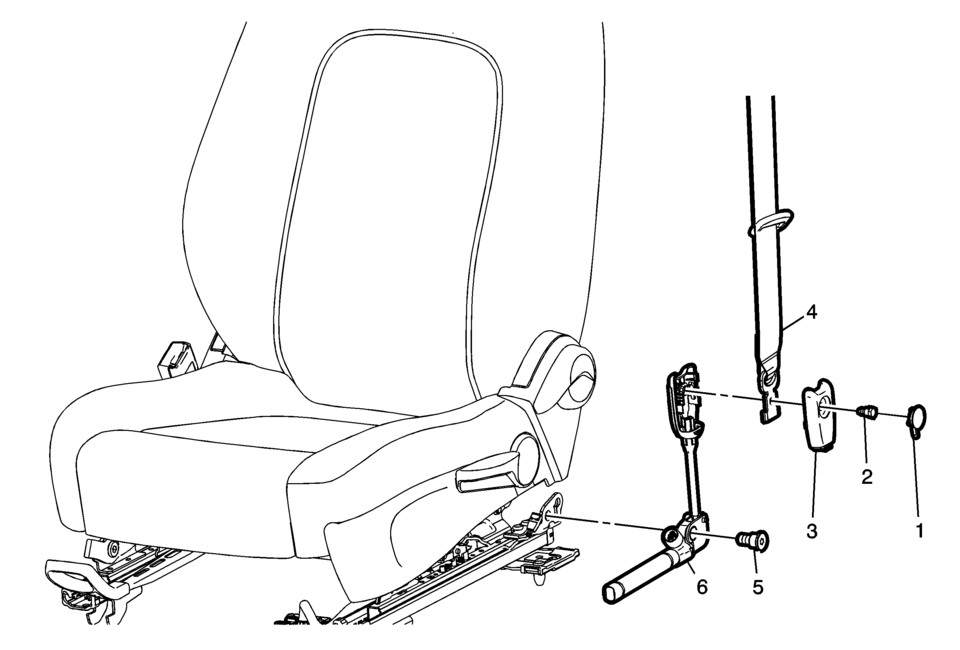

Callout

Component Name

Warning:

Refer to SIR Warning.

Warning:

In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws.

Preliminary Procedures

  1. Move the front seat to the full forward and full up position.
  2. Disable the SIR. Refer to SIR Disabling and Enabling.
  3. For pretensioner handling and scrapping. Refer to Pretensioner Handling and Scrapping.

1

Driver or Passenger Seat Belt Tensioner Cover

2

Driver or Passenger Seat Belt Tensioner Cover Fastener

Caution:

Refer to Fastener Caution

Tighten


7.5?€‰Y?€‰(66?€‰lb?€‰in)

3

Driver or Passenger Seat Belt Tensioner Cover

4

Driver or Passenger Seat Belt Tensioner Seat Belt Latch

Procedure

Remove the seat belt with latch from front seat belt tensioner.

5

Driver or Passenger Seat Belt Tensioner Fastener

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

6

Driver or Passenger Seat Belt Tensioner Assembly

Procedure

Disconnect the electrical connector.

Front End Inflatable Restraint Discriminating Sensor Replacement
Front End Inflatable Restraint Discriminating Sensor Replacement Callout Component Name Warning: Refer to SIR Warning. ...

Front Seat Outboard Seat Back Airbag Replacement
Front Seat Outboard Seat Back Airbag Replacement Callout Component Name Warning: Following the deployment of a side impact air ...
