Chevrolet Sonic Repair Manual: Front Seat Cushion Inner Trim Panel Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Trim Panels/Welts / Front Seat Cushion Inner Trim Panel Replacement



Front Seat Cushion Inner Trim Panel Replacement

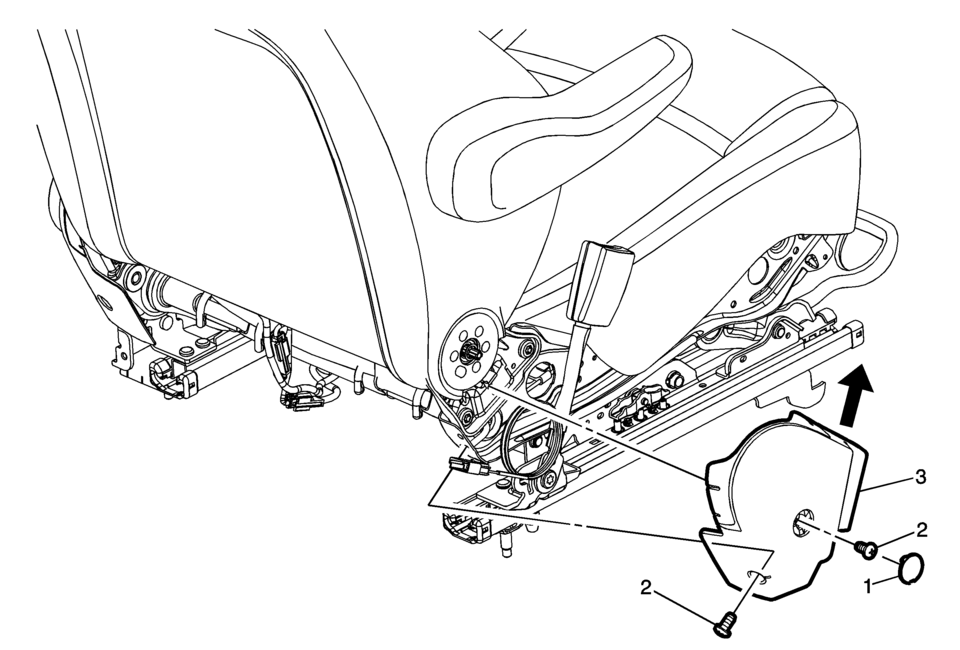

Callout

Component Name

1

Driver or Passenger Seat Inner Recliner Finish Cover Cap

Procedure

Use a flat-bladed tool to release the cap from the recliner cover.

2

Driver or Passenger Seat Inner Recliner Finish Cover Fastener (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


8?€‰Y (71?€‰lb?€‰in)

3

Driver or Passenger Seat Inner Recliner Finish Cover

Procedure

Firmly grasp the upper area of the finish cover that folds over the seat cushion frame, pull upward and then outboard to disengage the finish cover from the seat cushion frame.
