Chevrolet Sonic Repair Manual: Center Pillar Upper Trim Panel Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Trim Panels/Welts / Center Pillar Upper Trim Panel Replacement



Center Pillar Upper Trim Panel Replacement

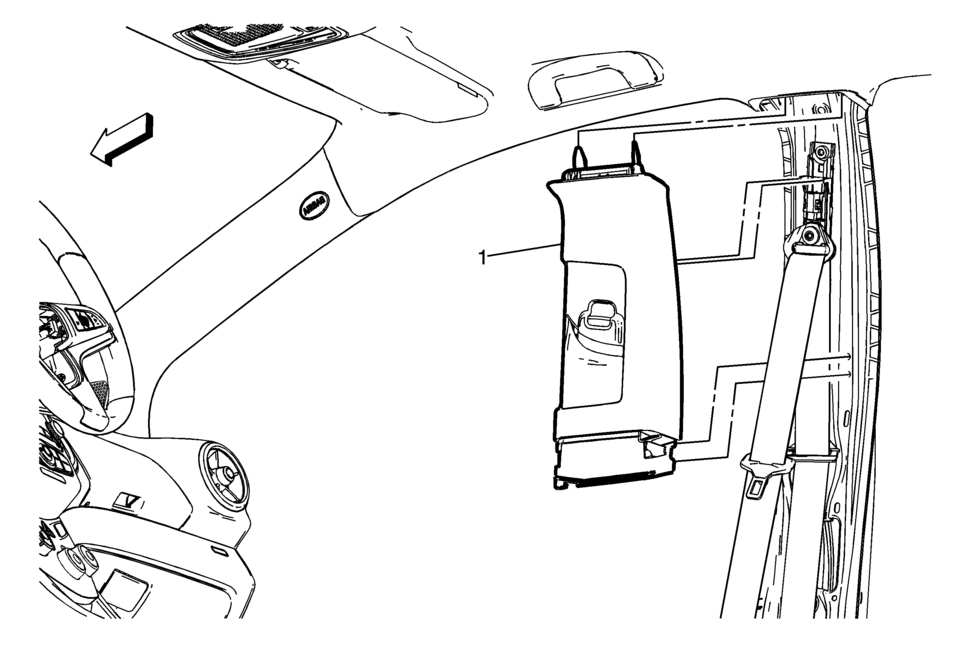

Callout

Component Name

Preliminary Procedure

  1. Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement.
  2. Remove the seat belt from the front seat. Refer to Driver or Passenger Seat Shoulder Belt Replacement.

1

Center Pillar Upper Trim Panel Assembly

Procedure

When replacing the center pillar upper trim panel, feed the seat belt through the panel.
