Chevrolet Sonic Repair Manual: Center Pillar Lower Trim Panel Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Trim Panels/Welts / Center Pillar Lower Trim Panel Replacement



Center Pillar Lower Trim Panel Replacement

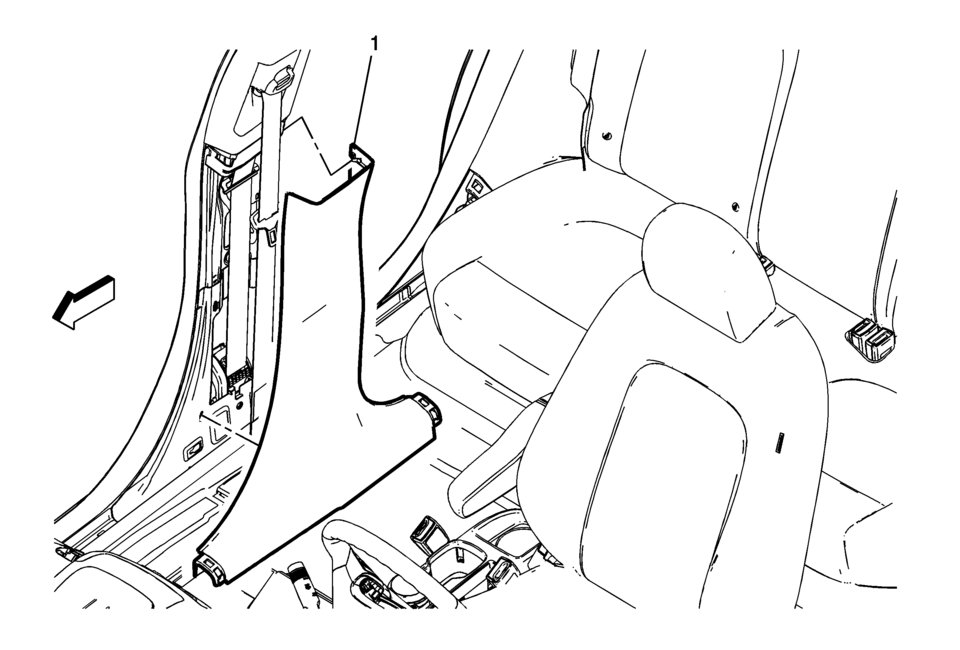

Callout

Component Name

Preliminary Procedure

  1. Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement.
  2. Remove the rear side door opening floor carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement.
  3. Move seat to full forward position.

1

Center Pillar Lower Trim Panel Assembly

Procedure

Ensure the seat belt webbing does not become trapped during installation.

Cargo Tie Down Loop Replacement
Cargo Tie Down Loop Replacement Callout Component Name 1 Cargo Tie Down Hook Fastener Caution: Refer to Fastener ...

Center Pillar Upper Trim Panel Replacement
Center Pillar Upper Trim Panel Replacement Callout Component Name Preliminary Procedure Remove the center pillar lower trim panel. ...
