Cargo Tie Down Loop Replacement

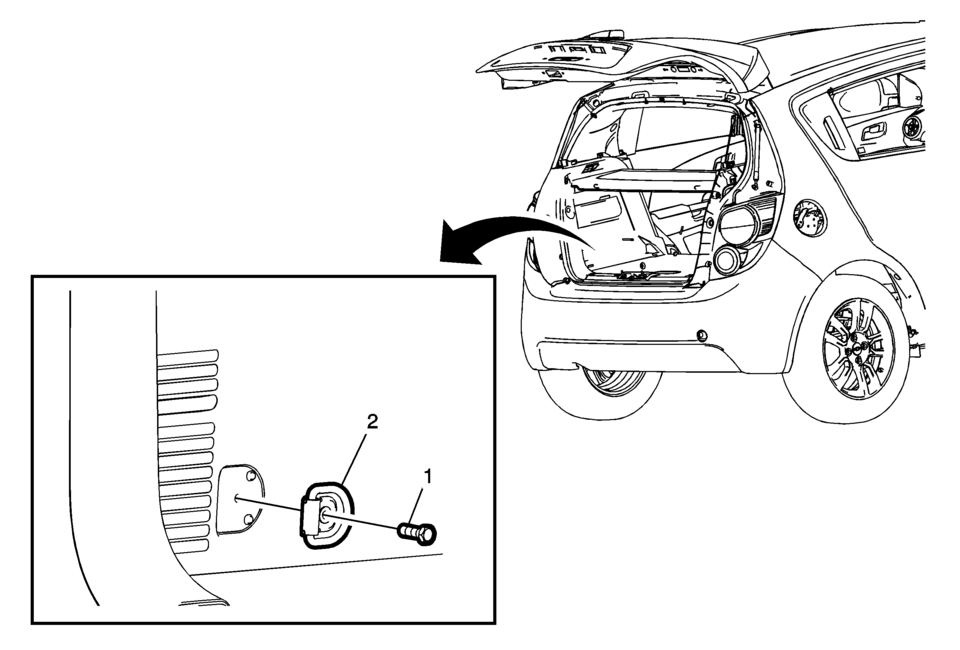

Callout

Component Name

1

Cargo Tie Down Hook Fastener

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y (80?€‰lb?€‰in)

2

Cargo Tie Down Hook Assembly
