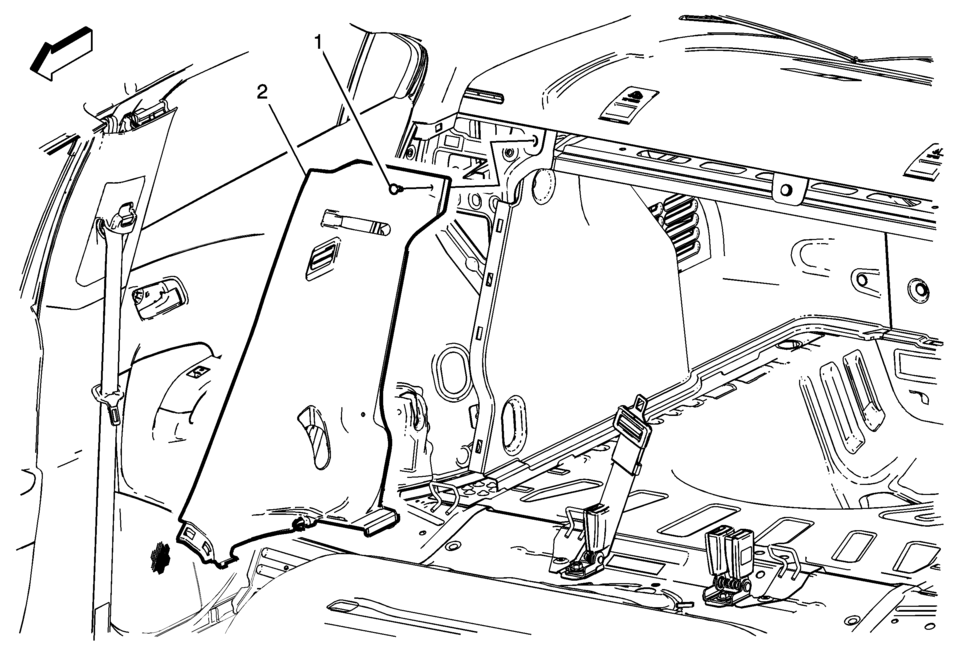

Body Side Trim Panel Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove rear side door opening floor carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement.
  2. Remove body rear seat back trim panel. Refer to Body Rear Seat Back Trim Panel Replacement.
  3. Remove lower rear shoulder belt fastener. Refer to Shoulder Belt Replacement - Rear.

1

Body Side Trim Panel Push-In Retainer

2

Body Side Trim Panel Assembly

Note:

Ensure seat belt assembly is routed over and through opening in panel assembly.
