Front Seat Riser Finish Cover Replacement

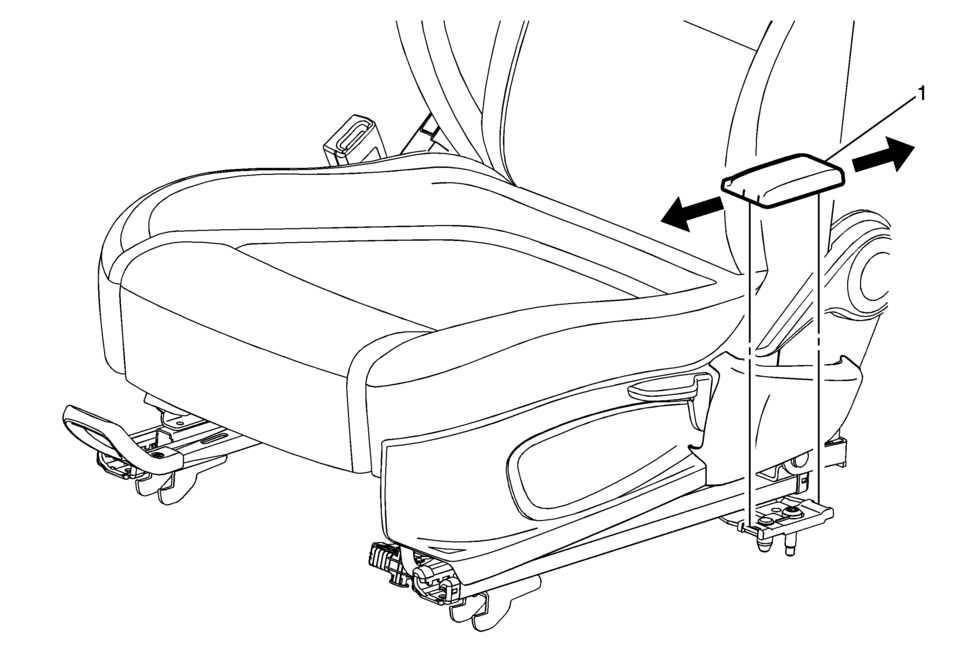

Callout

Component Name

1

Front Seat Riser Finish Cover

Caution:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

Remove the finish cover by firmly grasping the front or rear of the cover and pulling the cover outward then upward to disengage it from the track.
