Chevrolet Sonic Repair Manual: Front Side Door Window Switch Bezel Replacement (Right Side)

Chevrolet Sonic Repair Manual / Body / Doors and Enclosures / Doors / Front Side Door Window Switch Bezel Replacement (Right Side)

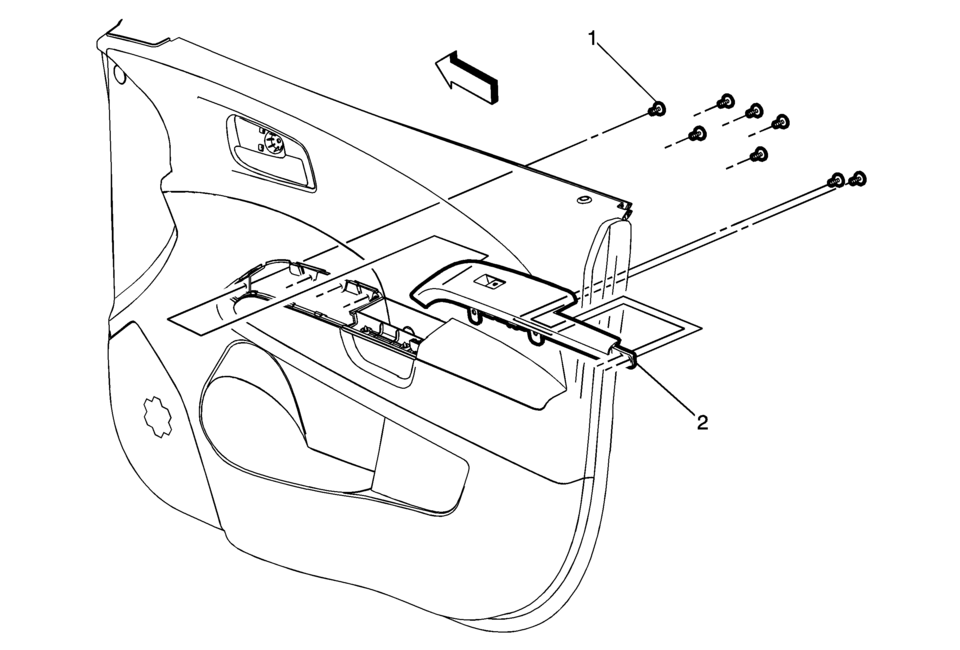

Front Side Door Window Switch Bezel Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door trim. Refer to Front Side Door Trim Replacement.

1

Front Side Door Window Switch Bezel Screw (Qty:?€‰8)

Caution:

Refer to Fastener Caution.

2

Front Side Door Window Switch Bezel Assembly
