Chevrolet Sonic Repair Manual: Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side
|
Callout |
Component Name |
|---|---|
|
1 |

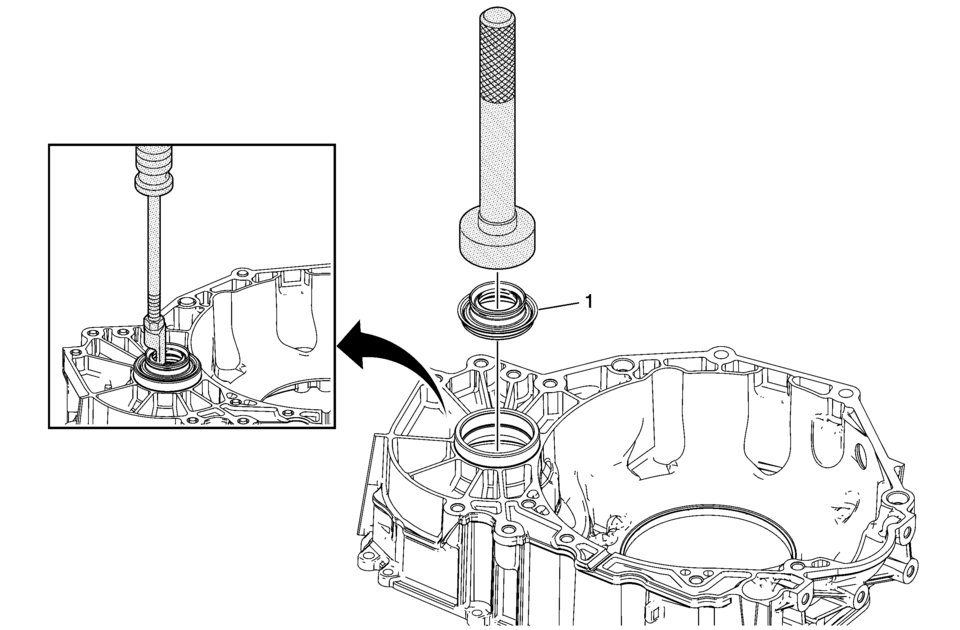

Front Wheel Drive Shaft Oil Seal Assembly Special Tools
For equivalent regional tools, refer to Special Tools. |
Front Wheel Drive Shaft Seal Replacement - Right Side
Front Wheel Drive Shaft Seal Replacement - Right Side
Callout
Component Name
Preliminary Procedures
Raise and support the vehicle. ...
Special Tools
Illustration
Tool Number / Description
CH?E9376
Holding Wrench
CH?E9400
J-45859
Hub Spi ...
