Chevrolet Sonic Repair Manual: Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW)

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Wheel Well Liner (Splash Shields) / Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW)



Front Wheelhouse Liner Inner Front Extension Replacement

Callout

Component Name

Preliminary Procedure

  1. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
  2. Remove the front fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement.
  3. Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement
  4. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement

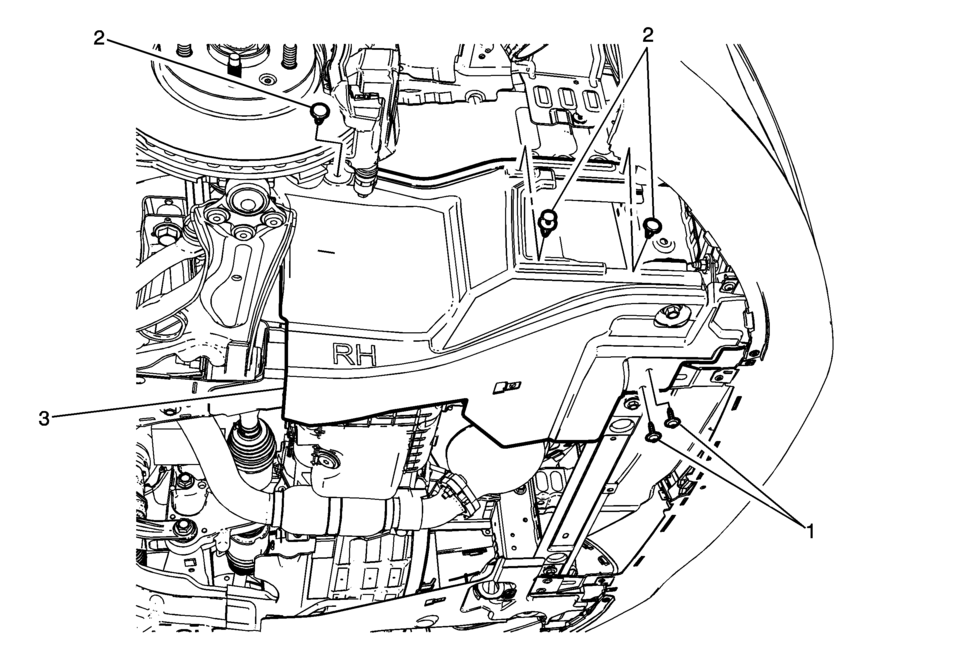

1

Front Wheelhouse Liner Inner Front Extension Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


3?€‰Y (27?€‰lb?€‰in)

2

Front Wheelhouse Liner Inner Front Extension Push-In Retainer (Qty:?€‰3)

3

Front Wheelhouse Liner Inner Front Extension

Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde)
Front Wheelhouse Liner Inner Front Extension Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel ...

Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LUV)
Front Wheelhouse Liner Inner Front Extension Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel ass ...
