Gear Position Sensor Replacement

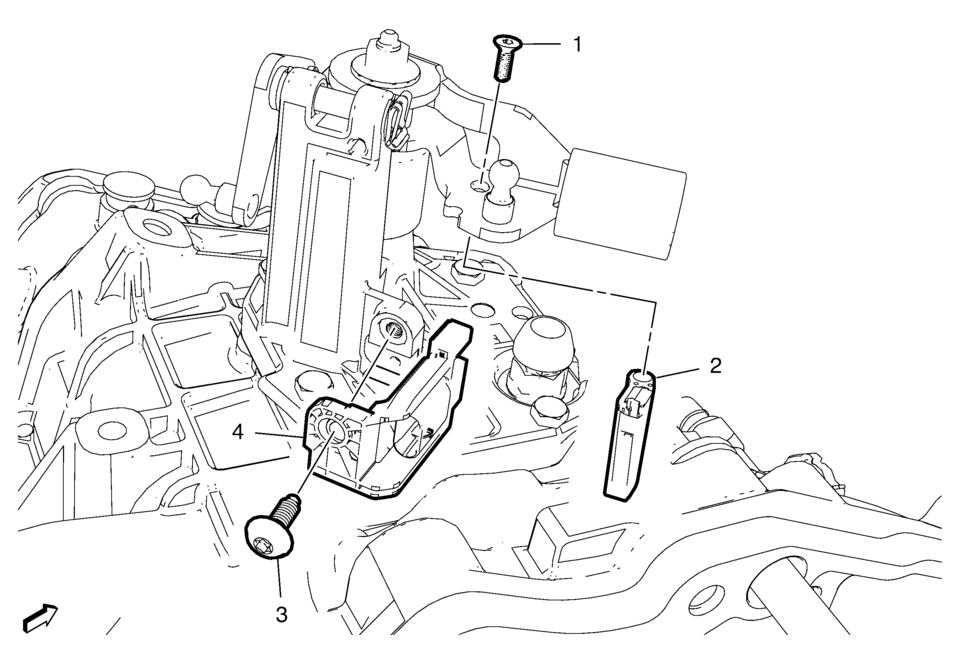

Callout	Component Name
Preliminary Procedure Unclip the engine control module (ECM) and bracket from the battery tray.
1	Gear Position Sensor Magnet Bolt Caution: Refer to Fastener Caution. Tighten 8 Y (71 lb ft)
2	Gear Position Sensor Magnet
3	Gear Position Sensor Bolt Tighten 8 Y (71 lb ft)
4	Gear Position Sensor Procedure Disconnect electrical connector After installation is complete, learn neutral gear sensor. Refer to Control Module References.
