Hood Side Seal Replacement

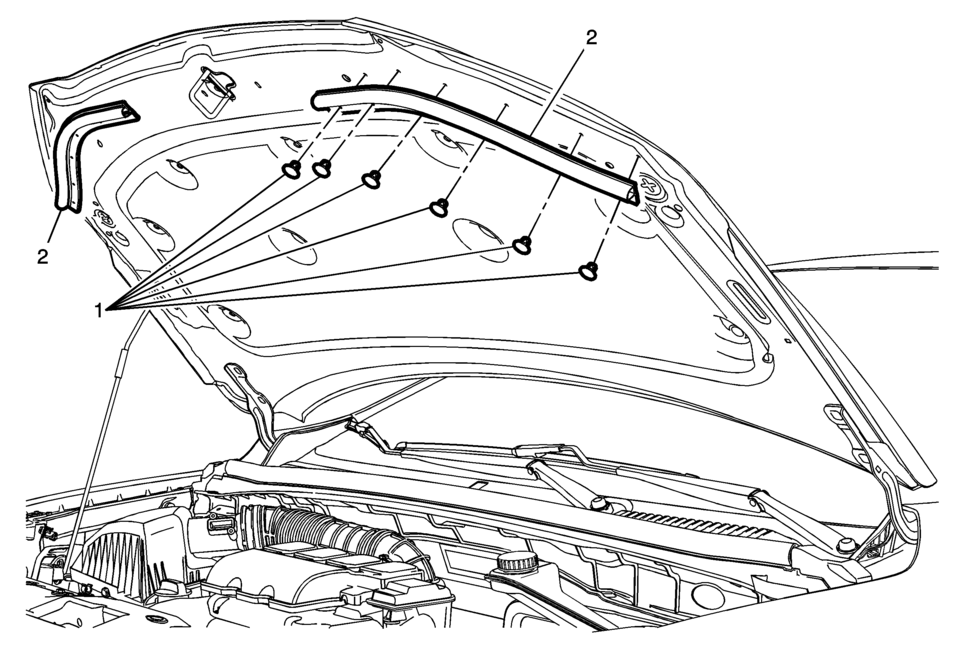

Callout

Component Name

1

Hood Side Seal Push-In Retainer (Qty:?€‰6)

2

Hood Side Seal
