Chevrolet Sonic Repair Manual: Hood Replacement
|

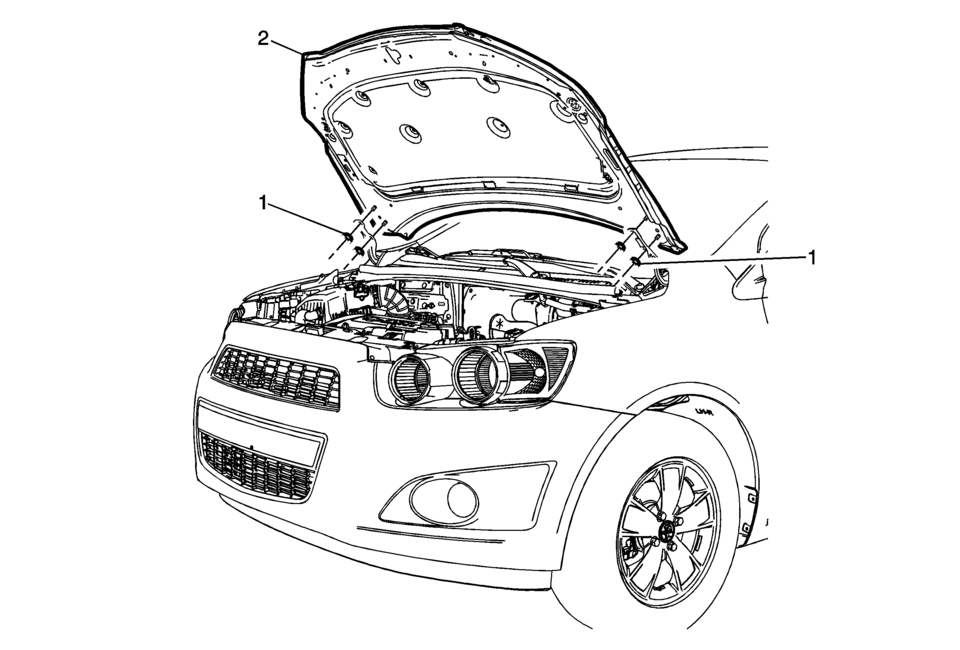

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Disconnect the windshield washer nozzle hose. |
|
|
1 |
Hood Hinge Nut (Qty:?€‰4) Caution: Refer to Fastener Caution. Procedure
Mark the location of the hinge to the hood with a grease pencil to aid in alignment. Tighten
22?€‰Y (16?€‰lb?€‰ft) |
|
2 |
Hood Procedure
|
Hood Rear Weatherstrip Replacement
in
Hood Rear Weatherstrip Replacement
Callout
Component Name
1
Hood Rear Weatherstrip
Procedure
The hood rear weat ...
Hood Side Seal Replacement
Hood Side Seal Replacement
Callout
Component Name
1
Hood Side Seal Push-In Retainer (Qty:?€‰6)
2
...
