Chevrolet Sonic Owner's Manual: How to Inspect the Engine Air Cleaner/Filter

Chevrolet Sonic Owner's Manual / Vehicle Care / Vehicle Checks / Engine Air Cleaner/Filter / How to Inspect the Engine Air Cleaner/Filter

To inspect the engine air cleaner/ filter, remove the filter from the vehicle and lightly shake the filter to release loose dust and dirt. If the filter remains covered with dirt, a new filter is required.

To inspect or replace the air cleaner/ filter:

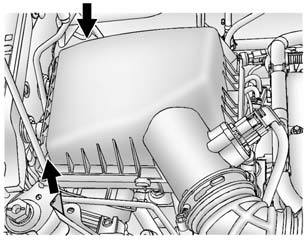

1.4L L4 Engine


1.4L L4 Engine

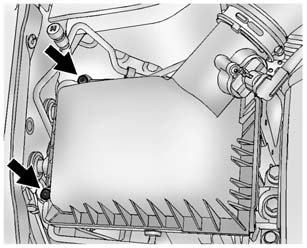

1.8L L4 Engine


1.8L L4 Engine

1. Remove the two screws, tilt the cover, and slide it out of the assembly.

2. Inspect or replace the engine air cleaner/filter.

3. Lower the cover, slide it into the assembly, then secure with the two screws.

See Maintenance Schedule  for replacement intervals.

Warning

Operating the engine with the air cleaner/filter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop flames if the engine backfires. Use caution when working on the engine and do not drive with the air cleaner/filter off.

Caution

If the air cleaner/filter is off, dirt can easily get into the engine, which could damage it. Always have the air cleaner/filter in place when you are driving.

When to Inspect the Engine Air Cleaner/Filter
Inspect the air cleaner/filter at the scheduled maintenance intervals. See Maintenance Schedule. If you are driving in dusty/dirty conditions, inspect the filter at each engine oil change. ...
