Chevrolet Sonic Repair Manual: Ignition Coil Installation

Special Tools

EN-6009 Remover and Installer Ignition Module

For equivalent regional tools, refer to Special Tools.


    Install the ignition coil (1) and remove EN-6009 remover and installer

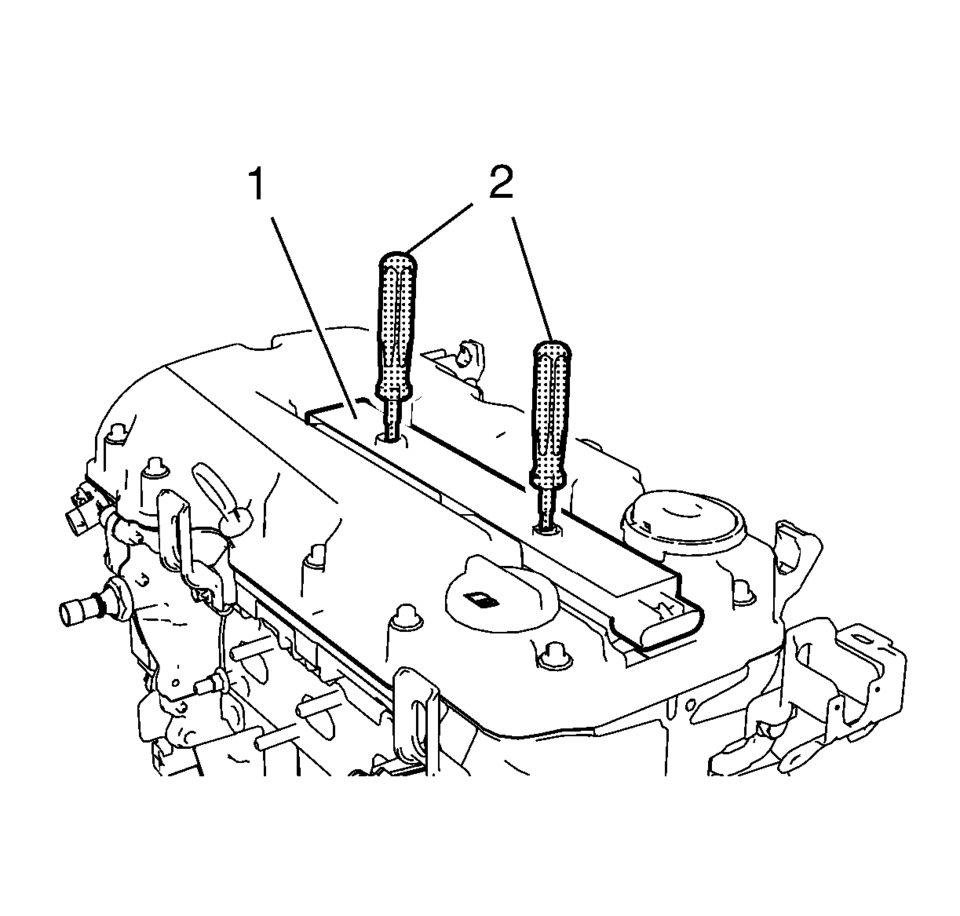

  1. Install the ignition coil (1) and remove EN-6009 remover and installer  (2).


  2. Caution:

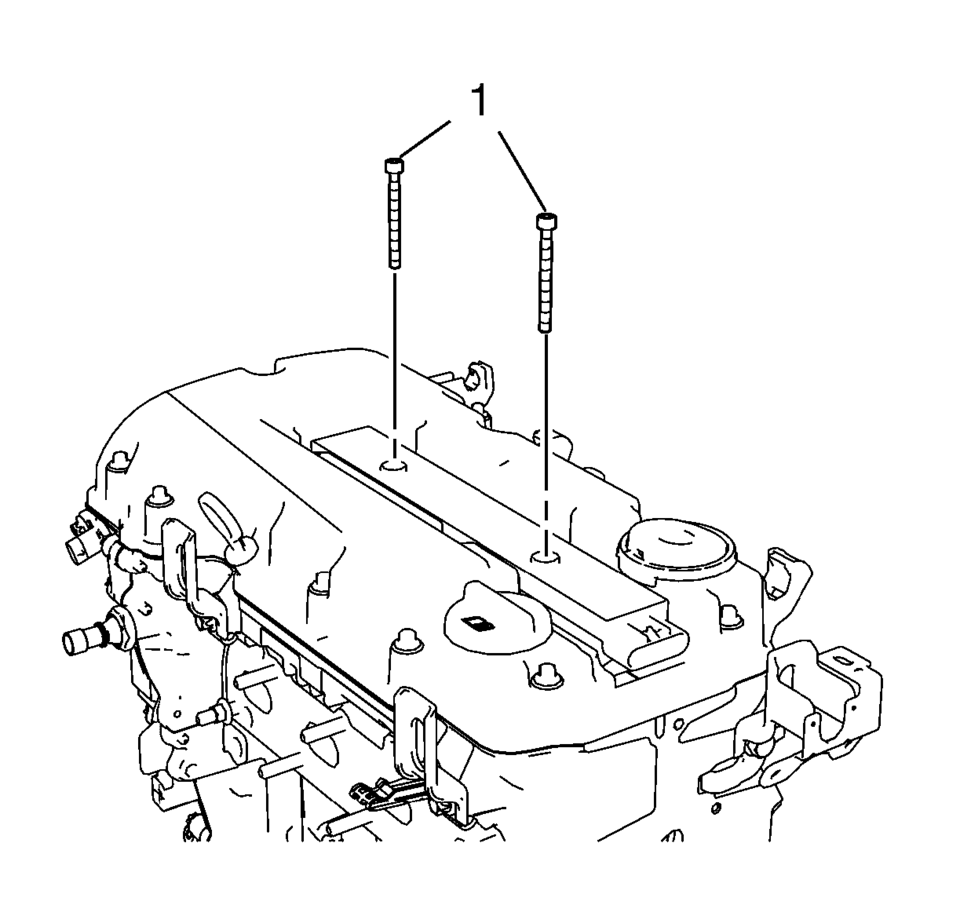

    Refer to Fastener Caution.

  3. Install the 2 ignition coil bolts (1) and tighten to  8 Y (71 lb in)

    .

Lock Cylinder Coding - Ignition
The ignition lock cylinder uses 8 key cut positions, 1?E. The ignition cylinder tumblers (3) are located on alternate sides of the cylinder (5). They are not snap-in and are ...

Ignition Coil Removal
Special Tools EN-6009 Remover and Installer Ignition Module For equivalent regional tools, refer to Special Tools. Remove the 2 ignition coil bolts (1). Install EN- ...
