Chevrolet Sonic Repair Manual: Instrument Panel Center Trim Panel Replacement
|

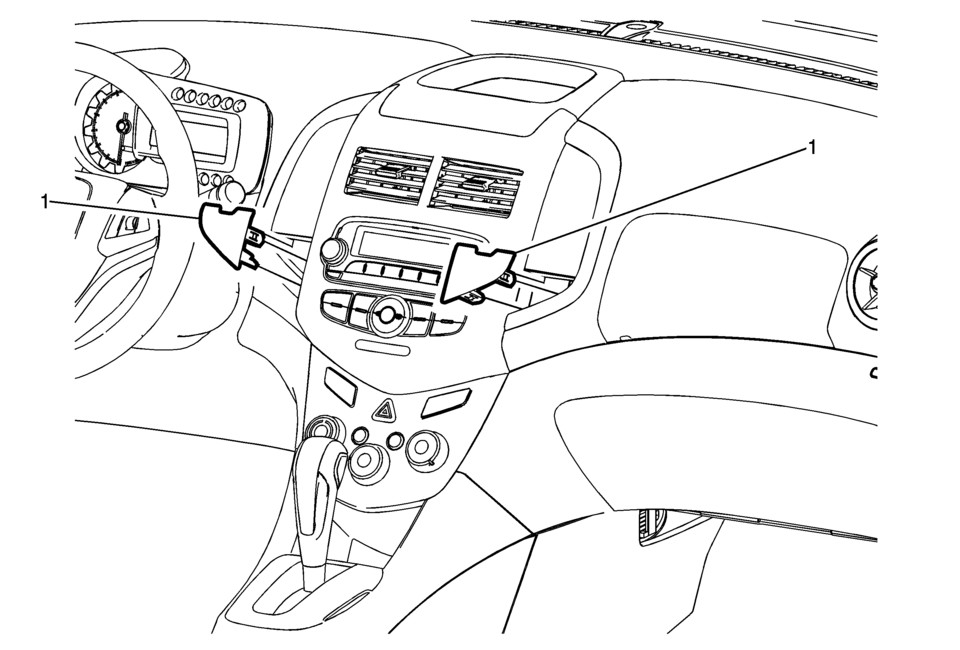

Callout |
Component Name |
|---|---|
|
1 |
Instrument Panel Center Trim Panel (Qty:?€‰2) Procedure
Use a flat bladed plastic trim tool in order to disengage the retainers securing the center trim plates to the instrument panel accessory upper trim plates. |
Instrument Panel Center Molding Replacement (Without U58)
Instrument Panel Center Molding Replacement
Callout
Component Name
1
Instrument Panel Center Molding Assembly
Procedu ...
Instrument Panel Center Upper Molding Replacement
Instrument Panel Center Upper Molding Replacement
Callout
Component Name
Preliminary Procedure
Remove the instrument panel cent ...
