Chevrolet Sonic Repair Manual: Liftgate Hinge Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Liftgate Hinge Replacement



Liftgate Hinge Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the liftgate. Refer to Liftgate Replacement.
  2. Lower the rear of the headliner to access the inner bolts. Refer to Headlining Trim Panel Replacement.
  3. Use a grease pencil to mark the liftgate hinge position to the body prior to removal.

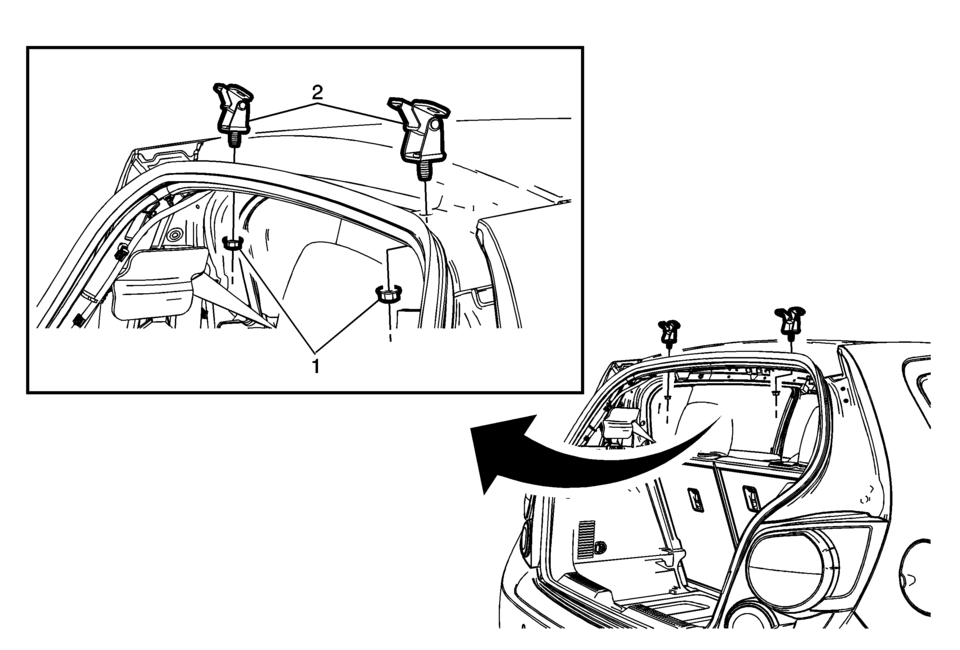

1

Liftgate Hinge Nut (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


43?€‰Y (32?€‰lb?€‰ft)

2

Liftgate Hinge (Qty:?€‰2)

Procedure

Adjust the liftgate if needed.

Liftgate Adjustment
Liftgate Adjustment Callout Component Name 1 Liftgate Caution: Refer to Fastener Caution. Procedure ...

Liftgate Replacement
Liftgate Replacement Callout Component Name Preliminary Procedures Disconnect the electrical connectors. Disconnect the liftgat ...
