Chevrolet Sonic Repair Manual: Liftgate Trim Finish Panel Replacement (Hatchback)

Chevrolet Sonic Repair Manual / Body / Body Interior / Trim Panels/Welts / Liftgate Trim Finish Panel Replacement (Hatchback)

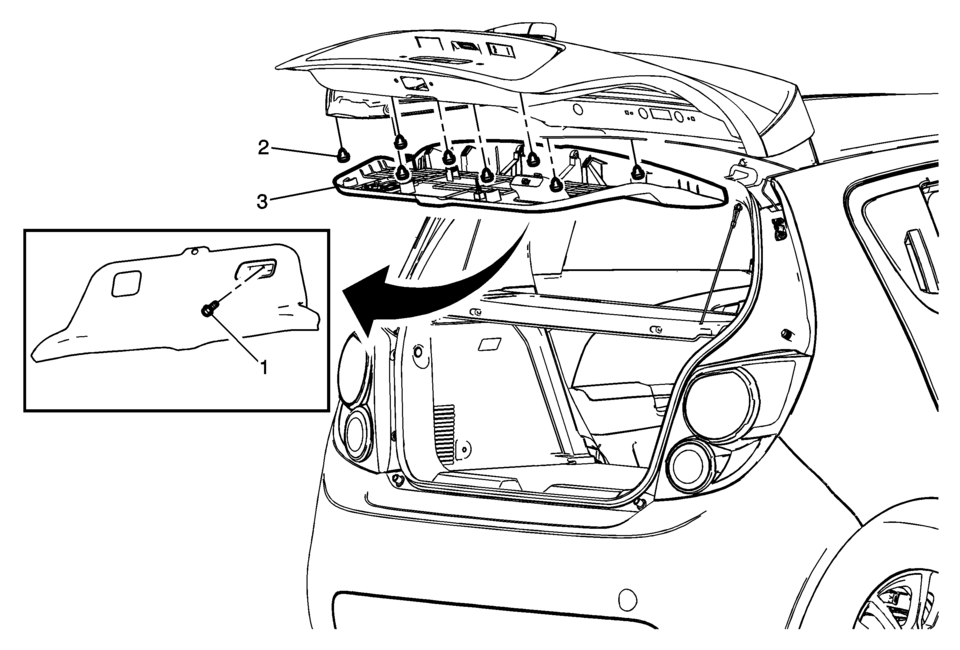

Liftgate Trim Finish Panel Replacement

Callout

Component Name

1

Liftgate Trim Finish Panel Fastener

Caution:

Refer to Fastener Caution.

2

Liftgate Trim Finish Panel Retainer (Qty:?€‰8)

3

Liftgate Trim Finish Panel Assembly

Procedure

Use a trim tool or equivalent to aid in removal.
