Chevrolet Sonic Repair Manual: Luggage Shade Replacement (Hatchback)

Chevrolet Sonic Repair Manual / Body / Body Interior / Trim Panels/Welts / Luggage Shade Replacement (Hatchback)

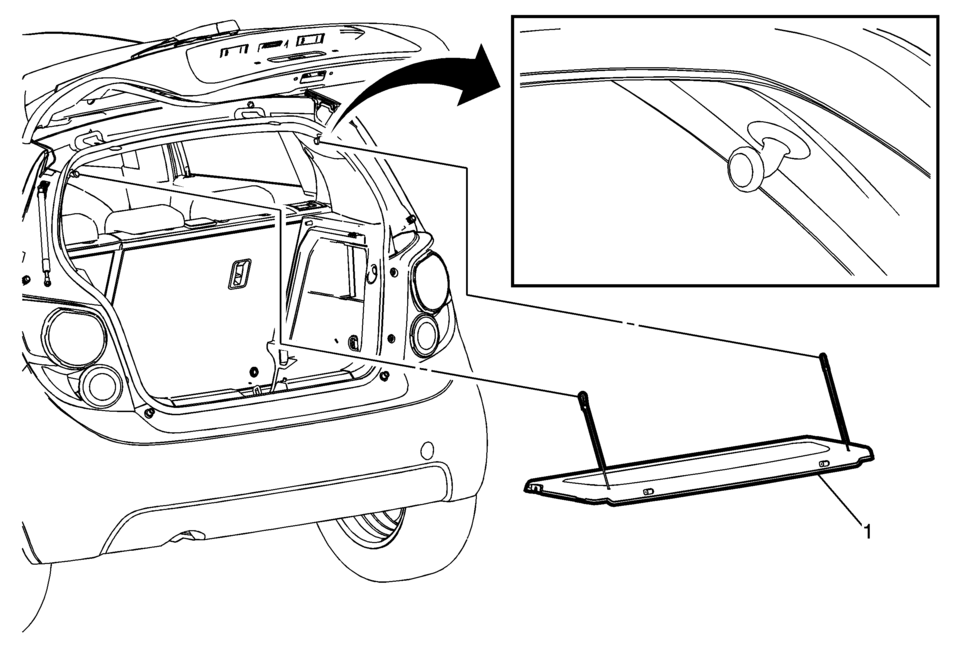

Luggage Shade Replacement

Callout

Component Name

1

Luggage Shade Assembly

Procedure

Detach luggage shade from upper support.
