Chevrolet Sonic Repair Manual: Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 2)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Transmission Oil Cooler / Transmission Unit / Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 2)

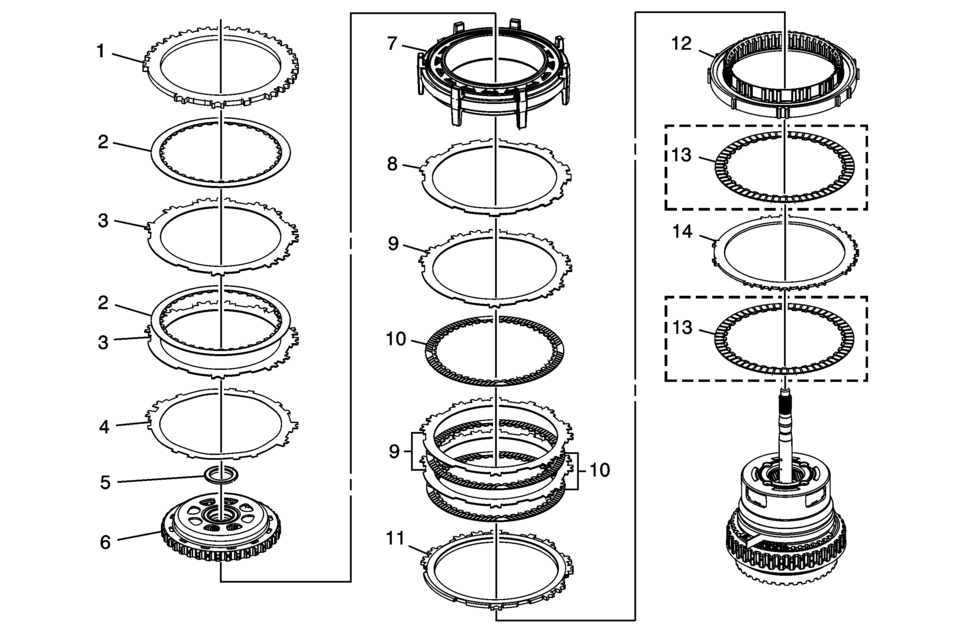

Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble

Callout

Component Name

1

1??? Clutch Backing Plate

2

1??? Clutch Plate Assembly (Qty: 2)

3

1??? Clutch Plate (Qty: 2)

4

1??? Clutch Waved Plate

5

Output Sun Gear Thrust Bearing Assembly

Note:

The sun gear thrust bearing may be stuck to the driven sprocket hub.

6

Output Sun Gear Assembly

7

Low-Reverse and 1??? Clutch Housing Assembly

8

Low and Reverse Clutch Apply Plate

9

Low and Reverse Clutch Plate (Qty: 3)

10

Low and Reverse Clutch Plate Assembly (Qty: 3)

11

Low and Reverse Clutch Backing Plate

12

Low and Reverse Clutch Assembly (OWC)

13

2? Clutch Plate Assembly (Qty: 2) - Model Dependent

Note:

The number of grooves in the clutch plate friction material varies depending on model.

14

2? Clutch Plate (Qty: 1)
