Chevrolet Sonic Repair Manual: Oil Level Indicator Tube Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Lubrication / Oil Level Indicator Tube / Oil Level Indicator Tube Replacement

Removal Procedure

Note:

If the engine oil level is at maximum, some oil may emerge when drawing out the oil dipstick guide tube.

Place collecting basin underneath.

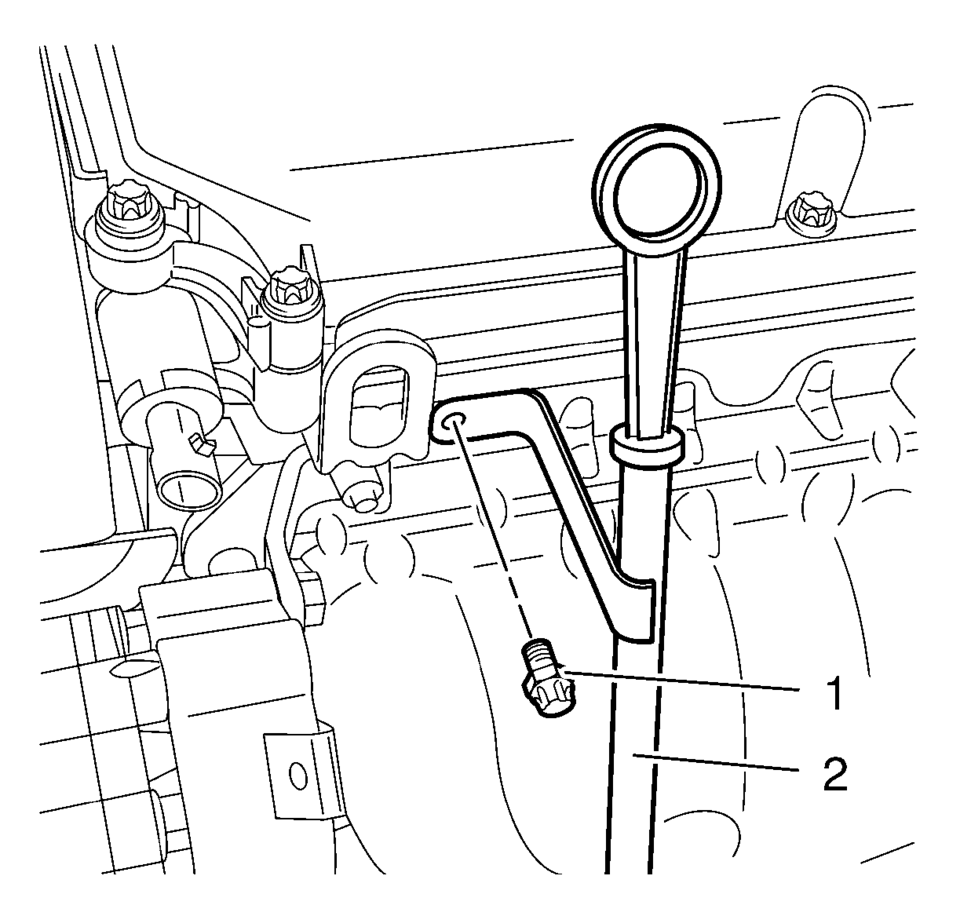

Remove the oil level indicator tube bolt (1).
Remove the oil level indicator tube (2).

Installation Procedure

Note:

Use a NEW oil level indicator tube seal

Install the oil level indicator tube (2).

Caution:

Refer to Fastener Caution.

Install the oil level indicator tube bolt (1) and tighten to 15 Y (11 lb ft)
.
Check the oil level and adjust as necessary.

Oil Level Indicator Tube

...

Oil Level Indicator and Tube Installation

Install a NEW oil level indicator tube gasket. Install the oil level indicator tube (2). Caution: Refer to Fastener Caution. Install the oil level indicator tube bolt&# ...
