Outside Rearview Mirror Housing Rear Cover Replacement

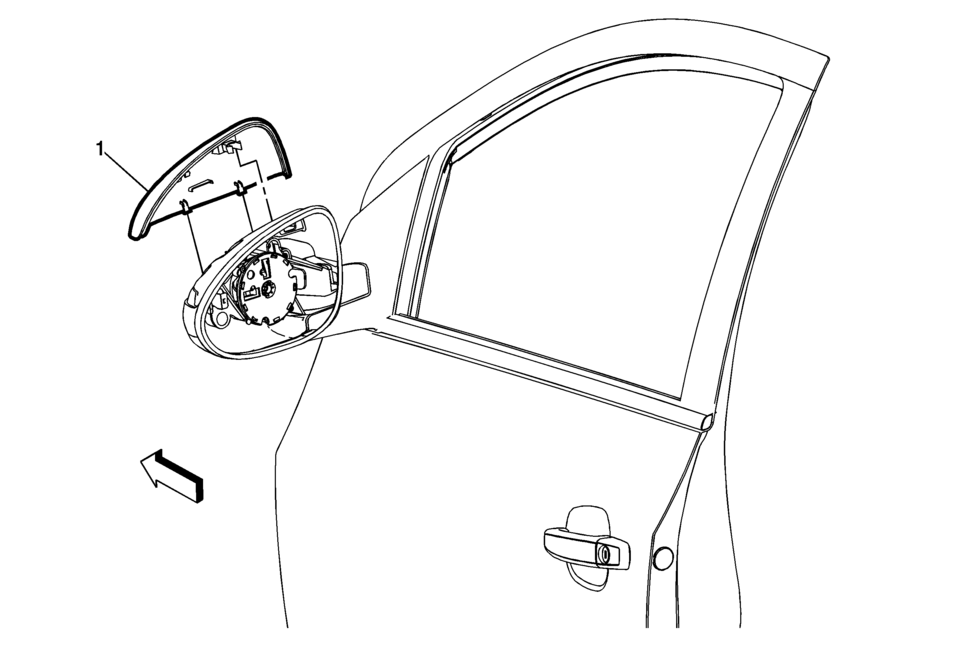

Callout

Component Name

Preliminary Procedures

Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement.

1

Outside Rearview Mirror Housing Cover

Note:

  1. After the mirror glass has been removed the retainers can be accessed to release.
  2. Align the housing cover with the slots in the mirror housing, push downward locking retainers in place.
  3. Inspect the outside mirror for proper operation.
Outside Rearview Mirror Glass Replacement
Removal Procedure Warning: Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury. Place masking ta ...

Outside Rearview Mirror Housing Replacement
Outside Rearview Mirror Housing Replacement Callout Component Name Preliminary Procedures Remove the outside rearview housing cover ...
