Outside Rearview Mirror Housing Replacement

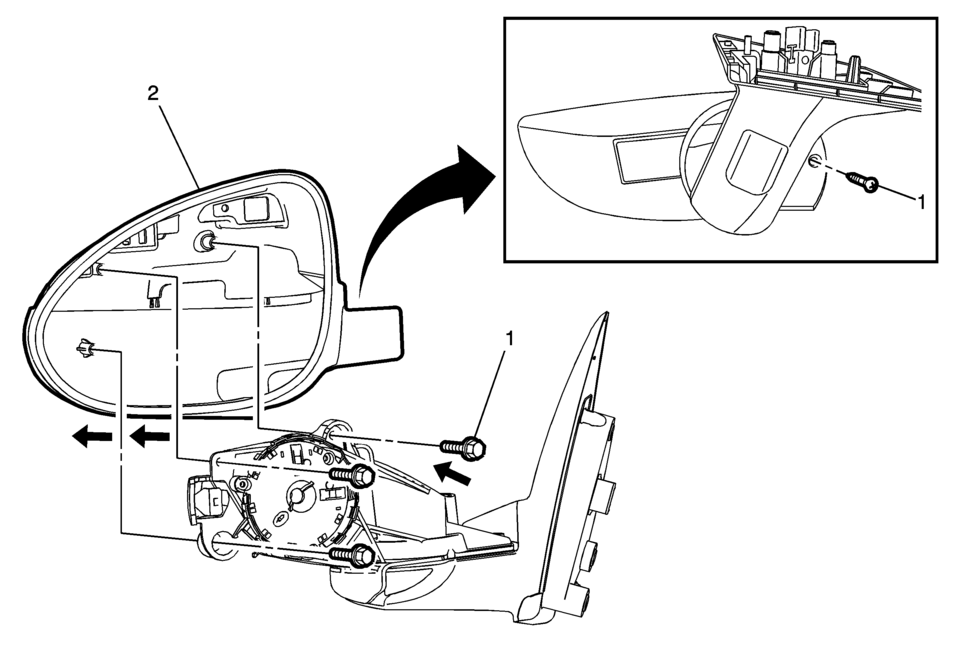

Callout

Component Name

Preliminary Procedures

  1. Remove the outside rearview housing cover. Refer to Outside Rearview Mirror Housing Rear Cover Replacement.
  2. Remove the outside rearview mirror motor. Refer to Outside Rearview Mirror Motor Replacement.

1

Outside Rearview Mirror Housing Fastener (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


5?€‰Y (44?€‰lb?€‰in)

2

Outside Rearview Mirror Housing

Procedure

Inspect the outside mirror for proper operation before installing the door trim panel.
