Chevrolet Sonic Repair Manual: Outside Rearview Mirror Remote Control Switch Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front side door widow switch bezel. Refer to Front Side Door Window Switch Bezel Replacement. |
|
|

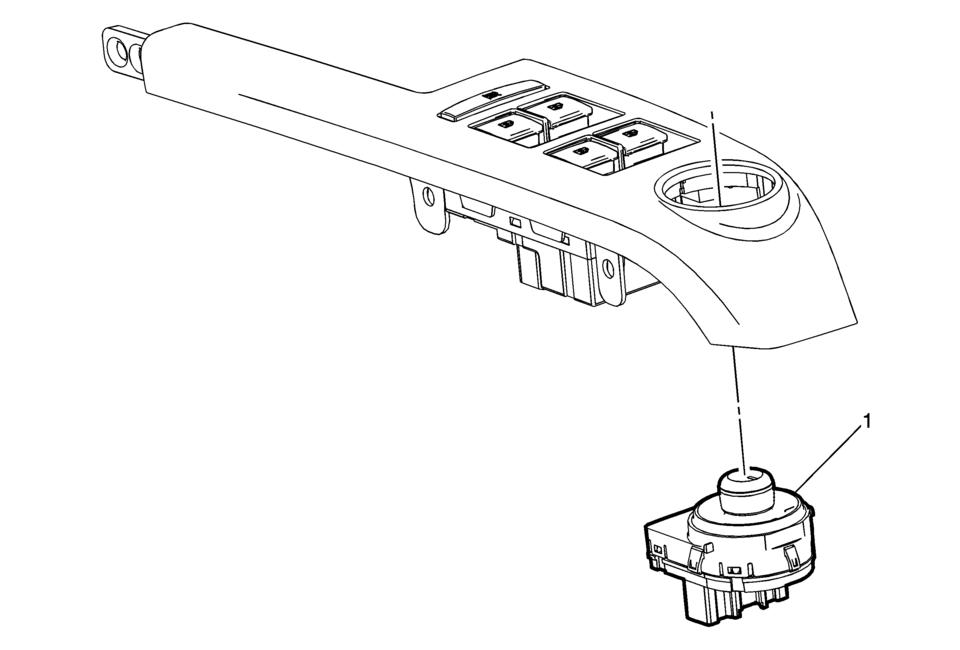

1 |
Outside Remote Control Rearview Mirror Switch Assembly Procedure
|
