Chevrolet Sonic Repair Manual: Outside Rearview Mirror Replacement (Power)

Chevrolet Sonic Repair Manual / Body / Mirrors / Outside Rearview Mirror Replacement (Power)

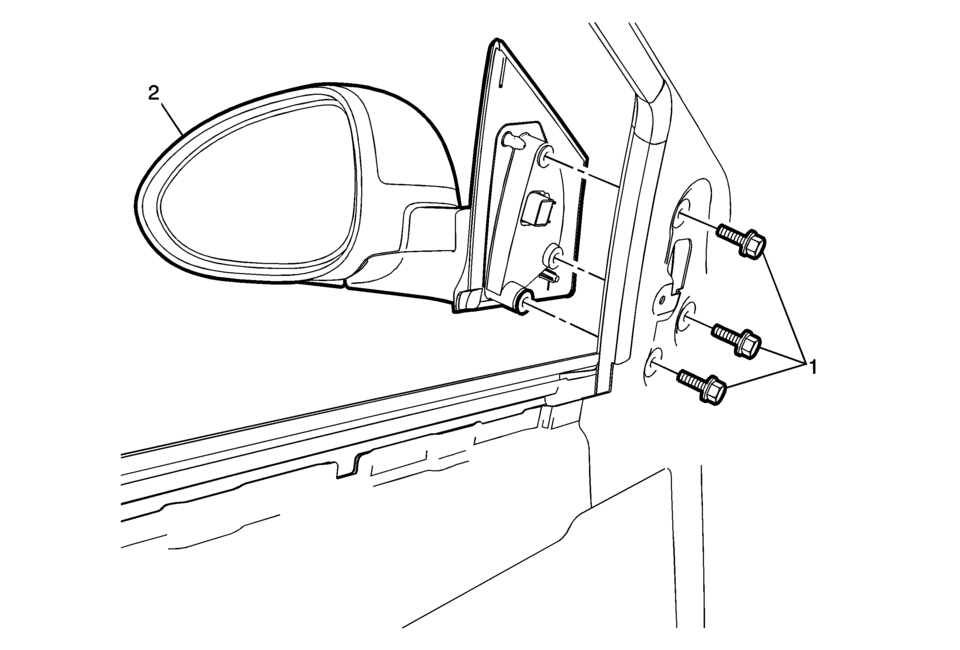

Outside Rearview Mirror Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the front side door upper front trim panel. Refer to Front Side Door Upper Front Trim Panel Replacement.
  2. Remove the outside rearview mirror bolt access hole on the front side door trim.

1

Outside Rearview Mirror Fastener (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Procedure

Disconnect the electrical connector.

Tighten


10?€‰Y (89?€‰lb?€‰in)

2

Outside Rearview Mirror

Procedure

Inspect the outside mirror for proper operation before installing the door trim panel.
