Chevrolet Sonic Repair Manual: Radiator Inlet Hose Replacement (LUV)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Radiator / Radiator Inlet Hose Replacement (LUV)

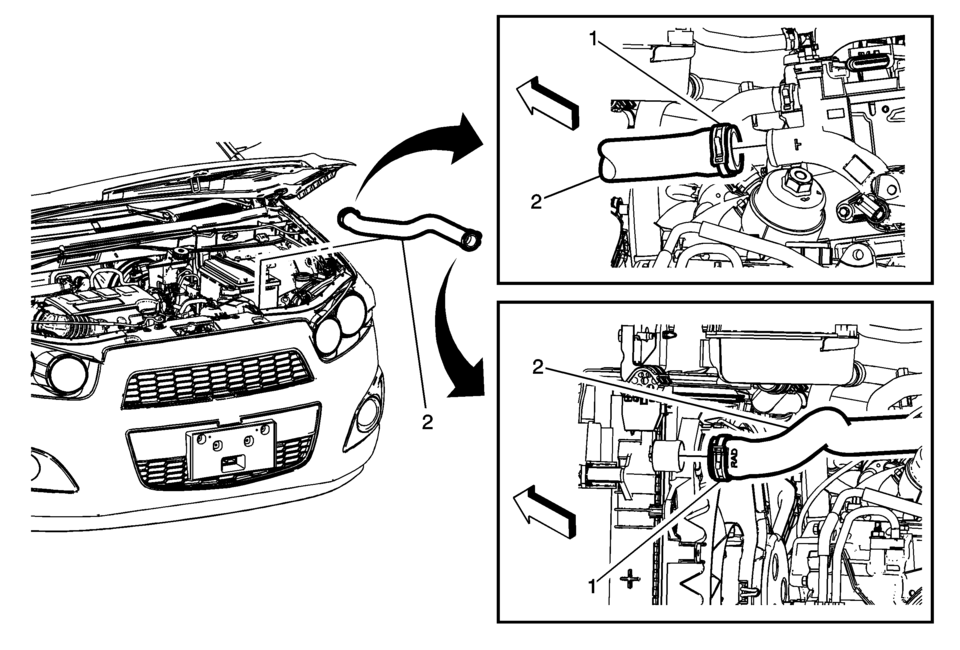

Radiator Inlet Hose Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling.
  2. Remove the fasteners securing the radiator surge tank to the vehicle and position the radiator surge tank out of the way. Refer to Radiator Surge Tank Replacement.

1

Radiator Inlet Hose Clamp (Qty: 2)

Special Tools

BO-38185 Hose Clamp Pliers

For equivalent regional tools, refer to Special Tools.

2

Radiator Inlet Hose
