Radiator Surge Tank Outlet Hose Replacement

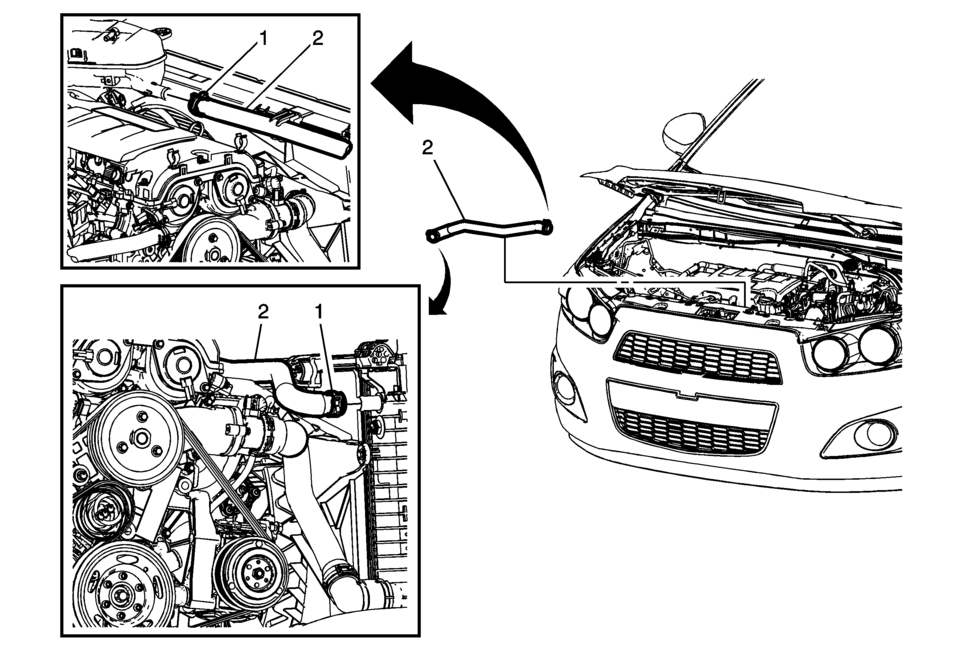

Callout

Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement.

1

Radiator Surge Tank Outlet Hose Clamp (Qty: 2)

Special Tools

BO-38185 Hose Clamp Pliers

For equivalent regional tools, refer to Special Tools.

2

Radiator Surge Tank Outlet Hose

Procedure

Unclip the radiator surge tank outlet hose from the engine fan shroud.
