Chevrolet Sonic Repair Manual: Radiator Surge Tank Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Radiator / Radiator Surge Tank Replacement



Radiator Surge Tank Replacement

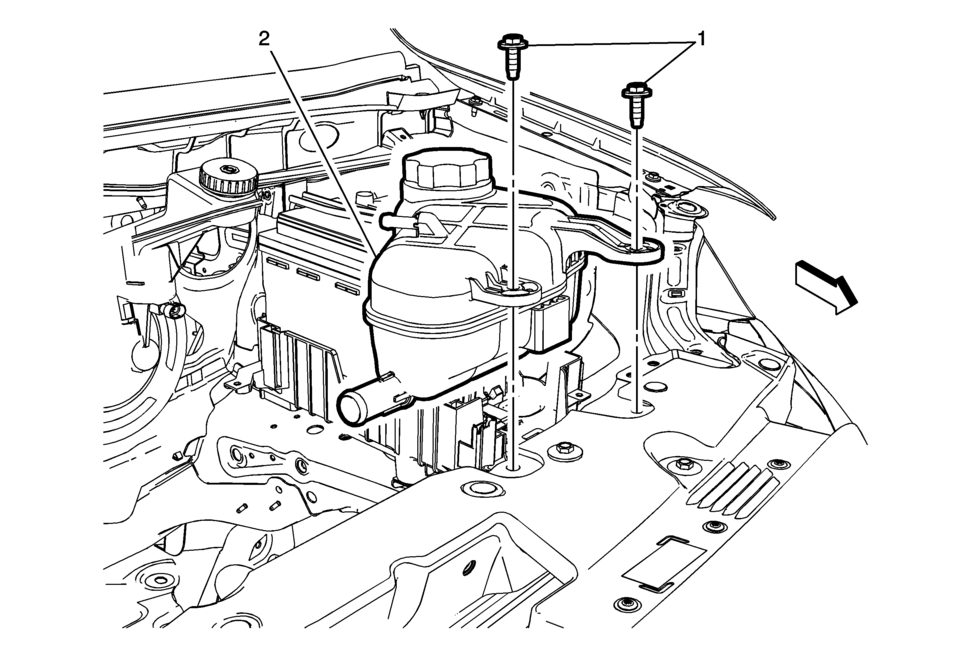

Callout

Component Name

Preliminary Procedure

  1. Drain the coolant. Refer to Cooling System Draining and Filling
  2. Remove the engine coolant air bleed hose. Refer to Engine Coolant Air Bleed Hose Replacement
  3. Remove the radiator surge tank outlet hose. Refer to Radiator Surge Tank Outlet Hose Replacement

1

Radiator Surge Tank Bolts (Qty: 2)

Caution:

Refer to Fastener Caution.

2

Radiator Surge Tank
