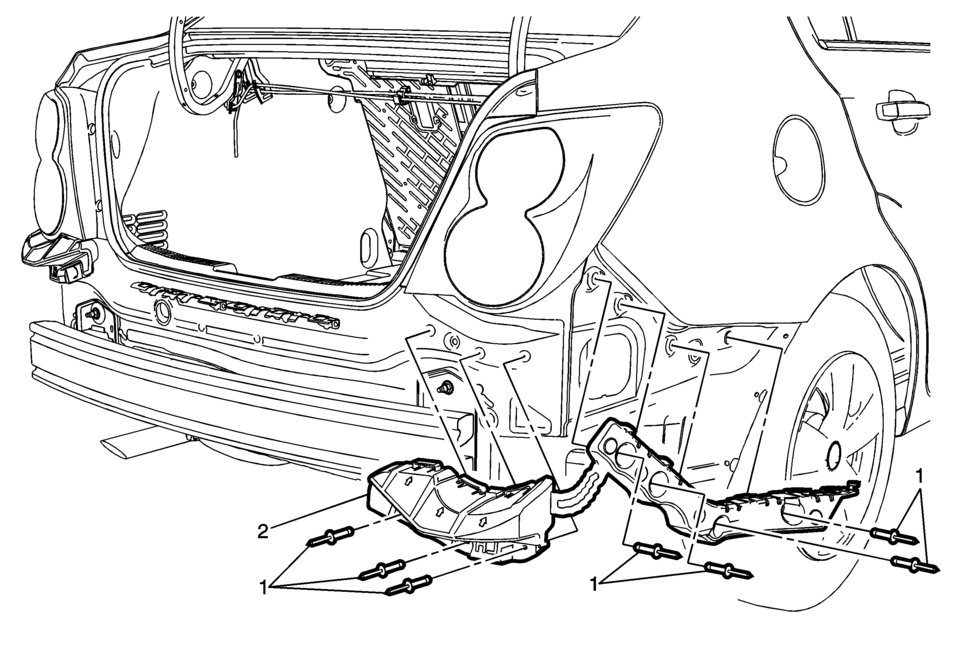

Rear Bumper Fascia Outer Guide Replacement

Callout

Component Name

Warning:

Refer to Eye Protection Warning.

Preliminary Procedure

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement.

1

Rear Bumper Fascia Outer Guide Rivet (Qty:?€‰7)

Special Tools

BO-594-A Hand Rivet Tongs

For equivalent regional tools, refer to Special Tools.

2

Rear Bumper Fascia Outer Guide
