Rear Bumper Impact Bar Replacement

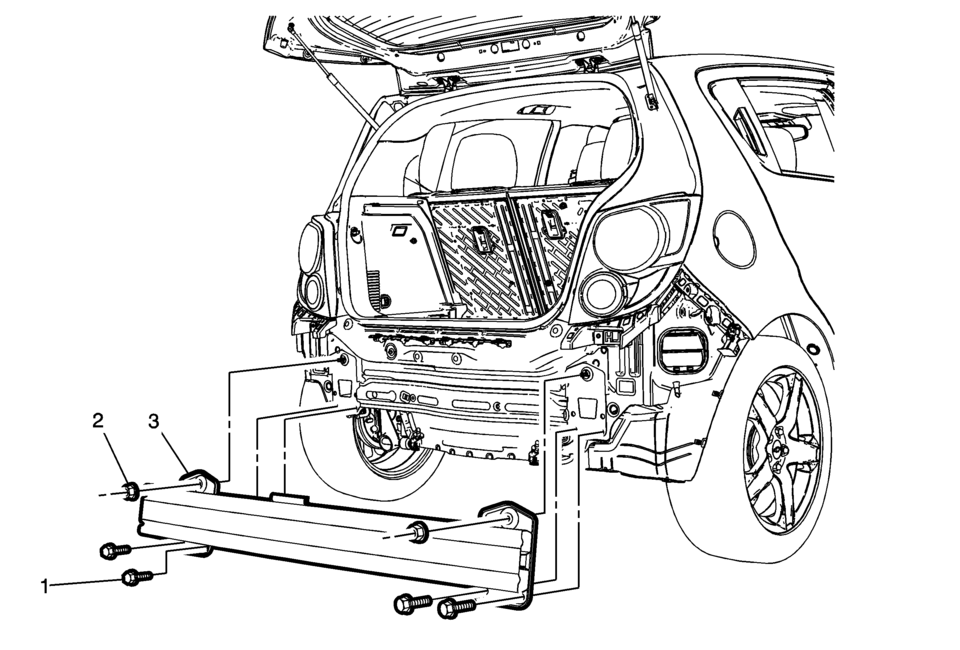

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement.

1

Rear Bumper Impact Bar Bolt (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


40?€‰Y (30?€‰lb?€‰ft)

2

Rear Bumper Impact Bar Nut (Qty:?€‰2)

Tighten


40?€‰Y (30?€‰lb?€‰ft)

3

Rear Bumper Impact Bar

Procedure

Transfer any parts as needed.
