Rear Compartment Lid Applique Replacement

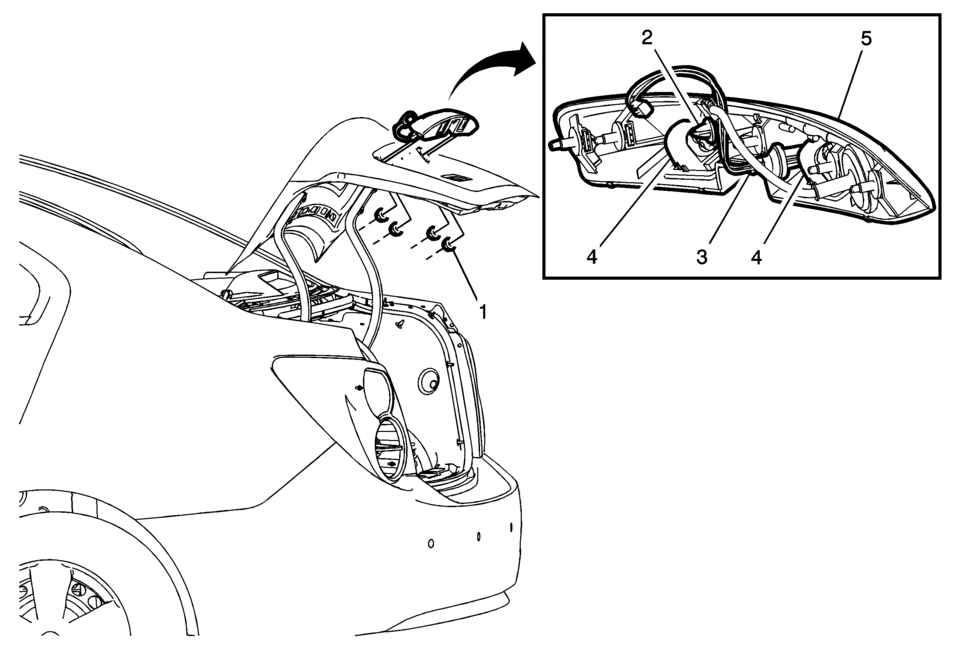

Callout

Component Name

Preliminary Procedure

  1. Open and support the rear compartment lid.
  2. Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement.
  3. Disconnect the electrical connectors.
  4. Remove the four nuts securing the rear compartment lid applique to the rear compartment lid.
  5. Release the center retainer from the rear compartment lid.

1

Rear Compartment Lid Applique Nut (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


5?€‰Y (44?€‰lb?€‰in)

2

Rear Compartment Lid Retainer

3

Liftgate Release Switch

Procedure

Remove the liftgate release switch. Refer to Liftgate Release Switch Replacement

4

Rear License Plate Lamp (Qty:?€‰2)

Procedure

Remove the rear license plate lamps. Refer to Rear License Plate Lamp Replacement.

5

Rear Compartment Lid Applique
