Chevrolet Sonic Repair Manual: Rear License Plate Lamp Bulb Replacement (Sedan)

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Bulbs / Rear License Plate Lamp Bulb Replacement (Sedan)

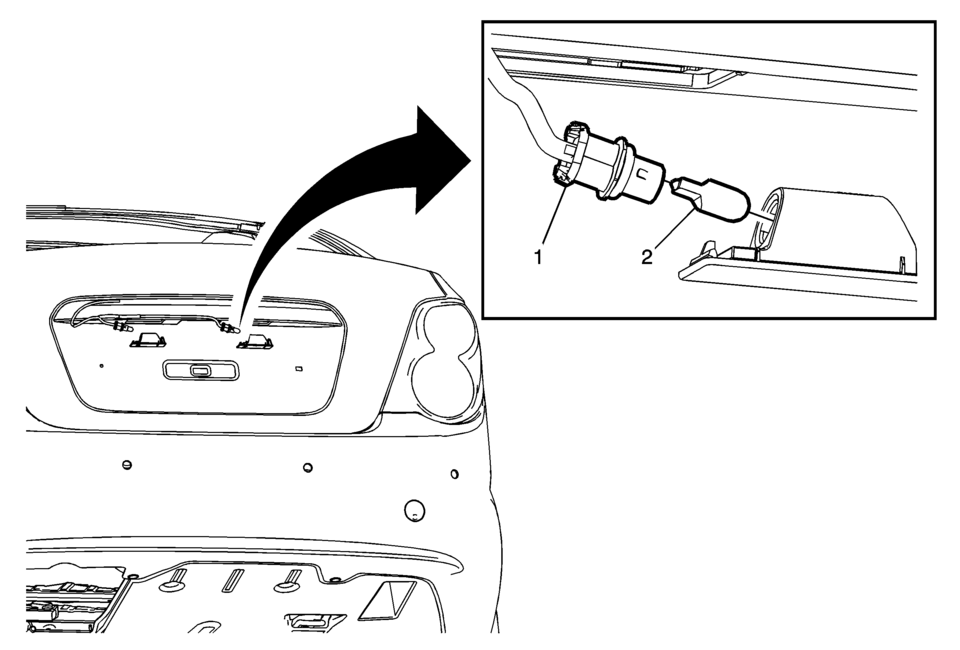

Rear License Plate Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear license plate lamp housing. Refer to Rear License Plate Lamp Replacement.

1

License Plate Lamp Socket

2

License Plate Lamp Bulb

Tip:

Pull the bulb straight out of the lamp socket.
