Chevrolet Sonic Repair Manual: Rear Seat Back Cushion Hinge Replacement

Chevrolet Sonic Repair Manual / Body / Seating / Seats / Rear / Rear Seat Back Cushion Hinge Replacement



Rear Seat Back Cushion Hinge Replacement

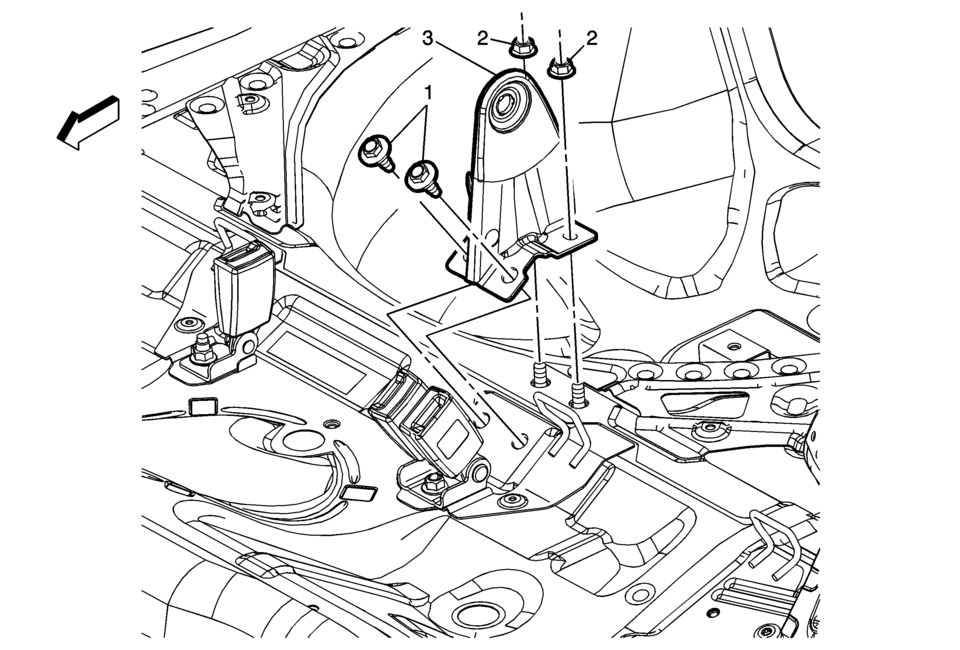

Callout

Component Name

Preliminary Procedure

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation
  2. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation
  3. Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement

1

Rear Seat Back Cushion Hinge Bolt (Qty: 2)

Caution:

Refer to Fastener Caution.

Tighten


43?€‰Y (32?€‰lb?€‰ft)

2

Rear Seat Back Cushion Hinge Nut (Qty: 2)

Tighten


43?€‰Y (32?€‰lb?€‰ft)

3

Rear Seat Back Cushion Hinge
