Chevrolet Sonic Repair Manual: Rear Seat Back Cushion Latch Release Knob Bezel Replacement
|
Callout |
Component Name |
|---|---|
|
1 |

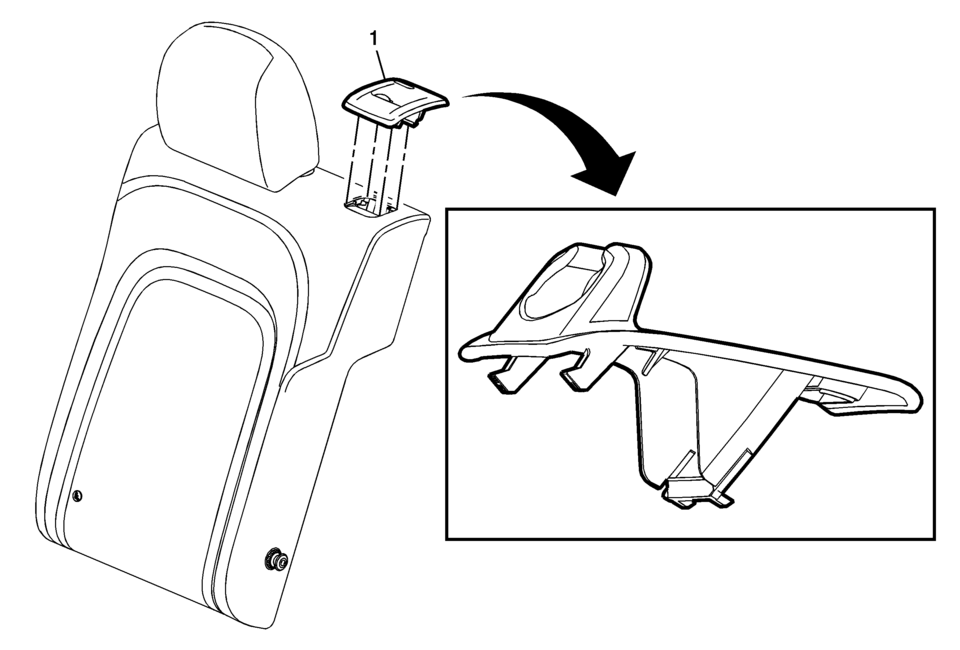

Rear Seat Back Cushion Latch Release Handle Bezel Procedure
Use a flat-bladed tool to tilt the rear of the handle upward, then lifting and pulling the bezel rearward to disengage the front hooks. |
Rear Seat Back Cushion Hinge Replacement
Rear Seat Back Cushion Hinge Replacement
Callout
Component Name
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear S ...
Rear Seat Back Cushion Panel Replacement
Rear Seat Back Cushion Panel Replacement
Callout
Component Name
Preliminary Procedure
Remove the rear seat back cushion. Refer to R ...
